Introduction

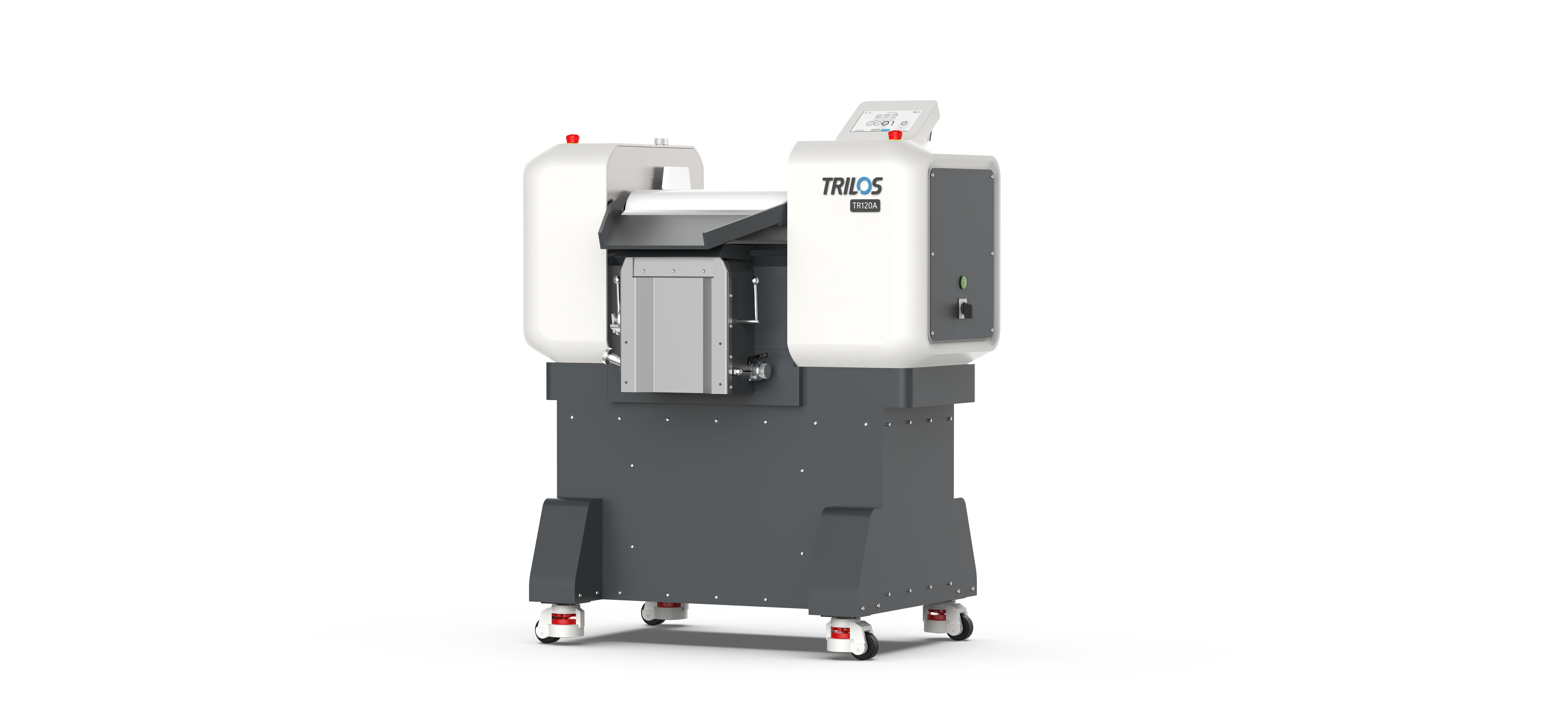

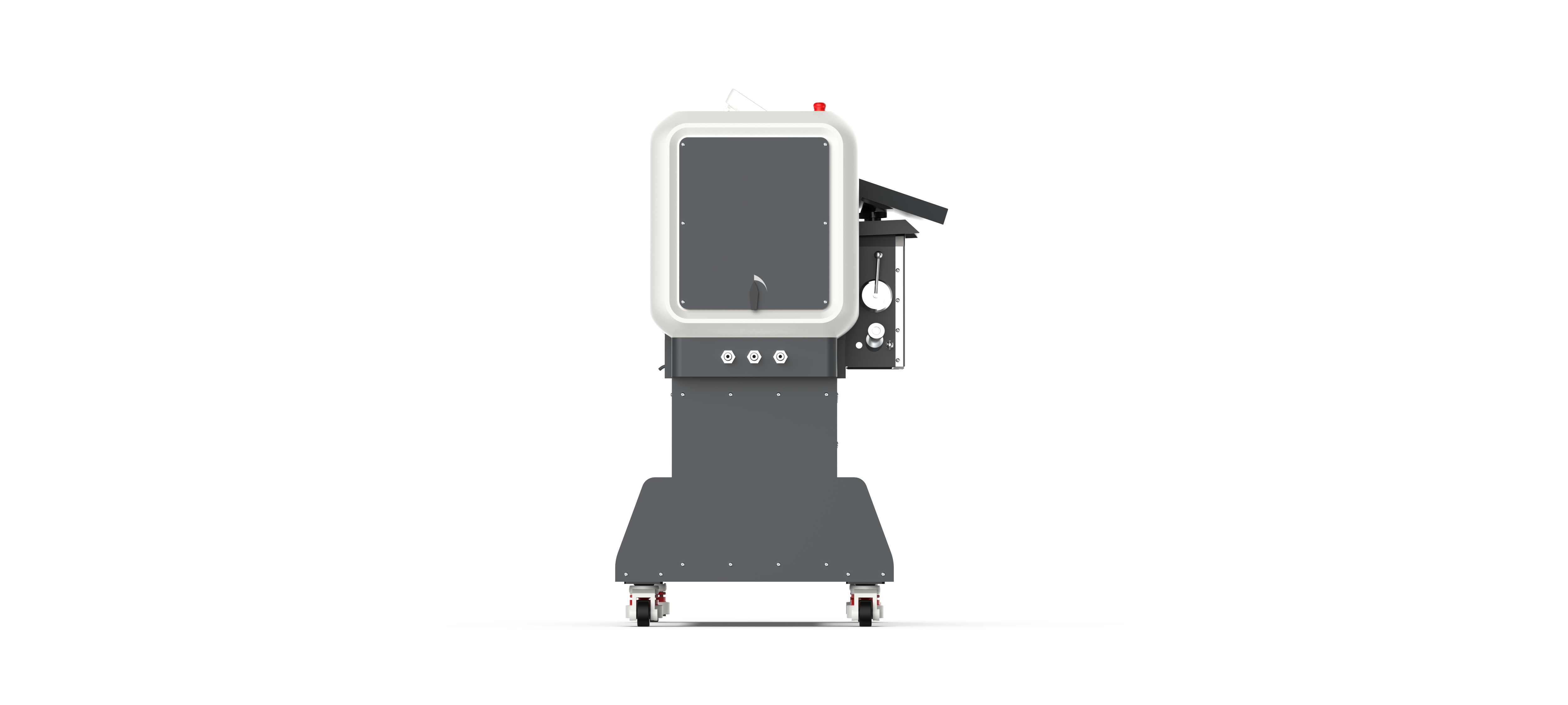

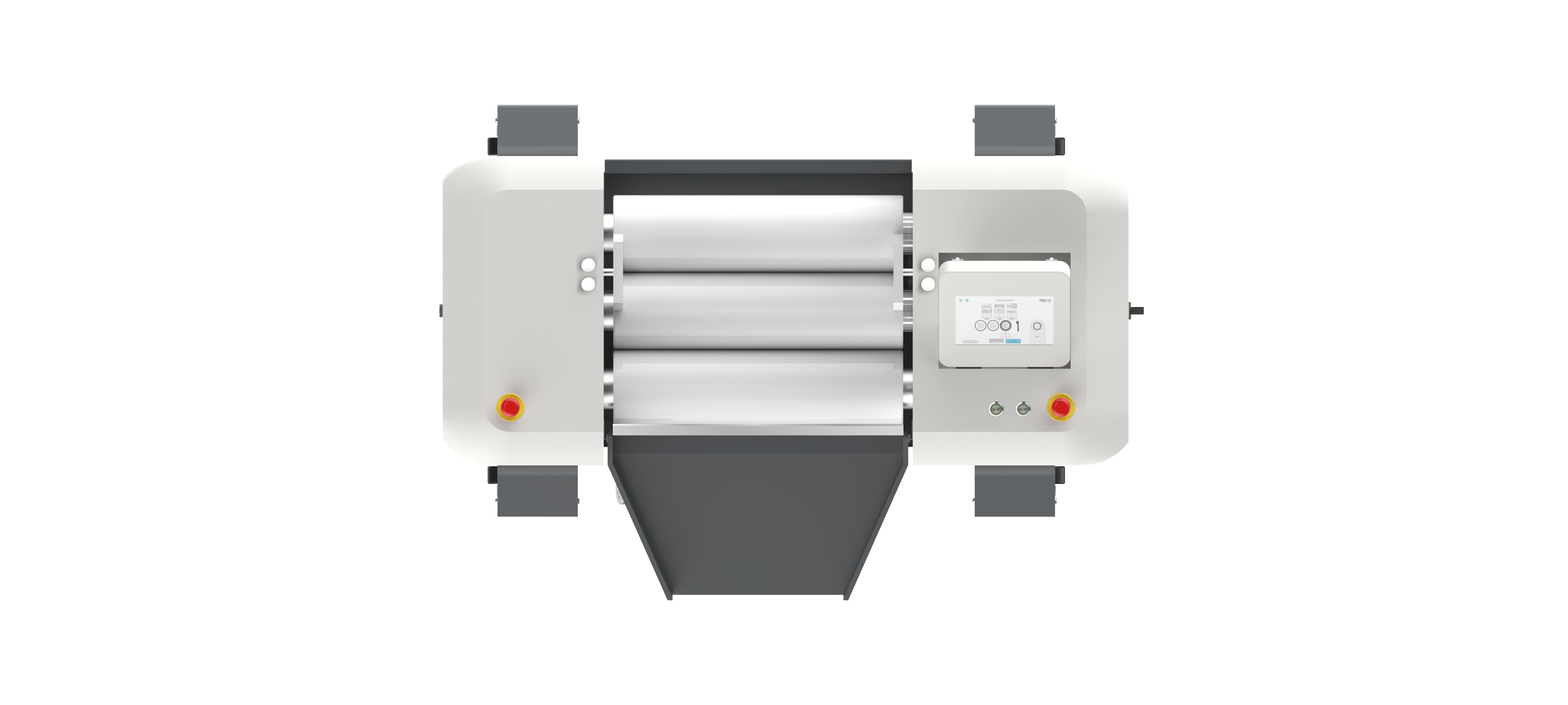

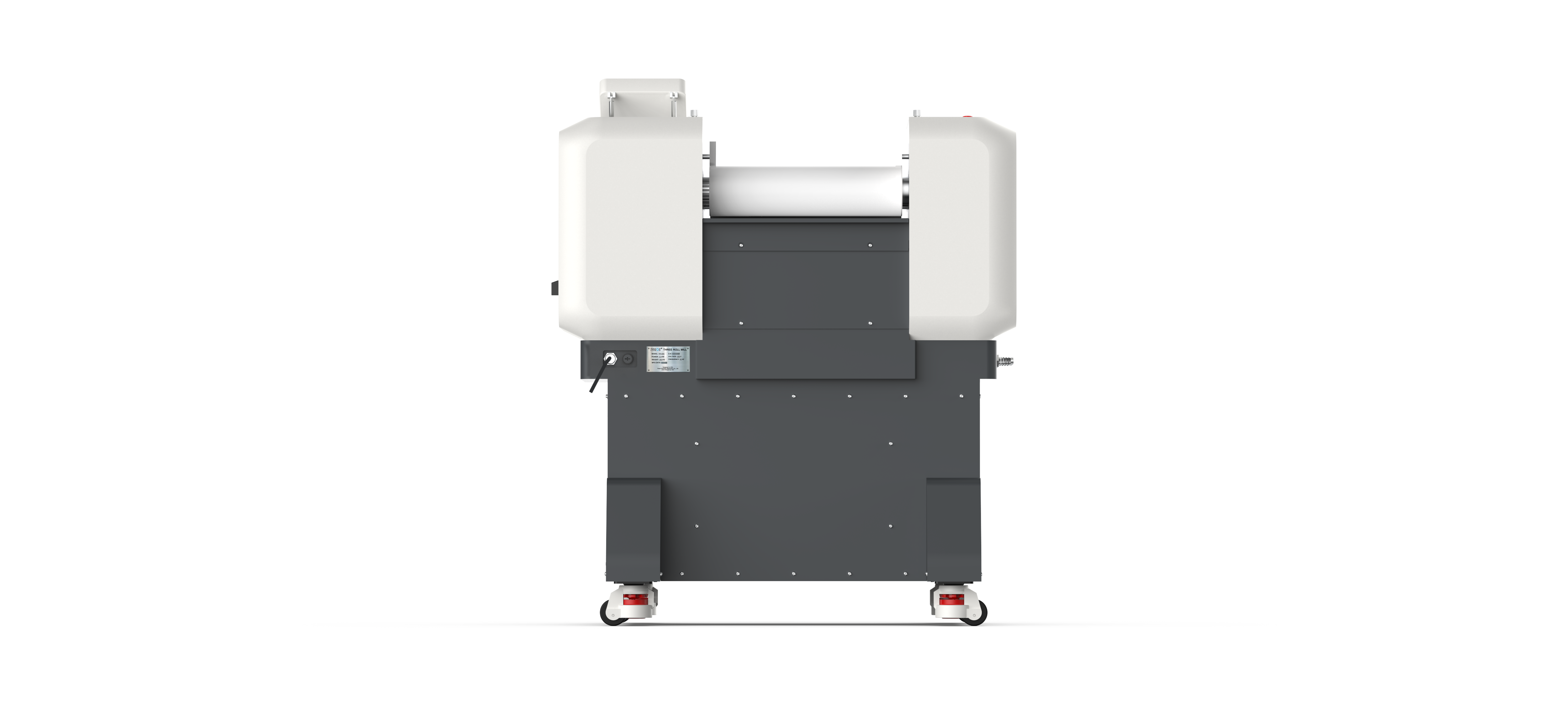

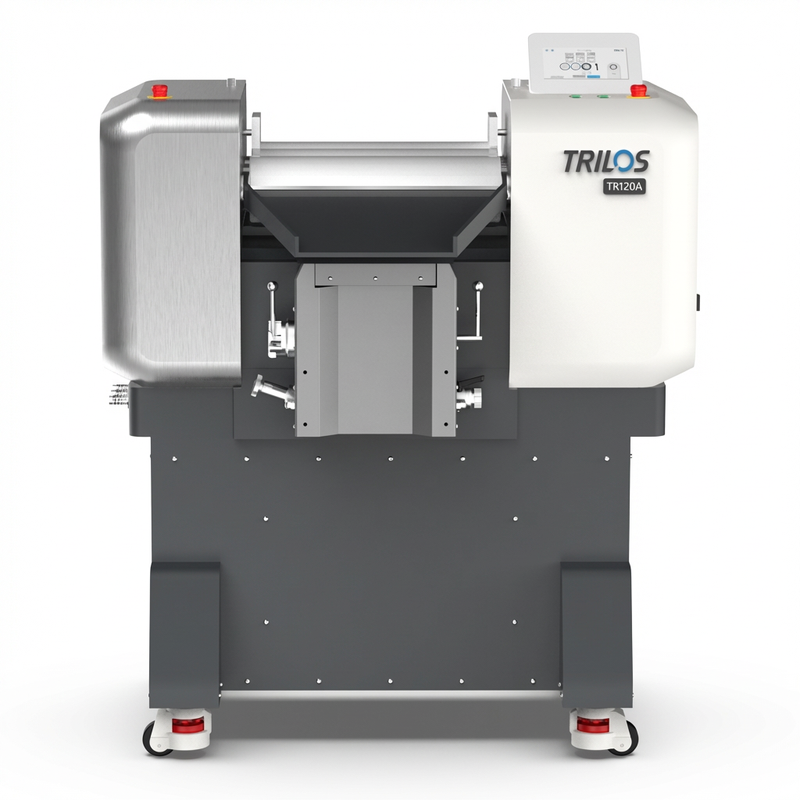

TRILOS TR120A is a heavy-duty production three roll mill engineered for continuous, high-yield manufacturing. With large-diameter rolls and high torque output, TR120A delivers powerful shear forces suitable for demanding industrial materials.
It supports TRILOS IoT platform and TRILOS Automated Feeding System, enabling scalable, intelligent production environments.
Features
-
1 µm Dispersion Fineness
-
TRILOS IoT Platform
-
Intelligent Touchscreen Control System
-
Aluminium Alloy Shell
-
High-Quality Roll Materials
-
Reliable Rolls
-
Circulating Water Bath
-
Customized Service
1 µm Dispersion Fineness
TR120A achieves particle sizes down to 1 μm with high batch-to-batch consistency, matching pilot-scale precision in full production environments.
TRILOS IoT Platform
TRILOS IoT platform pioneers in the three roll mill industry. It enables remote monitoring, parameter adjustment, and multi-step process execution via tablet, supporting smart manufacturing and process traceability.

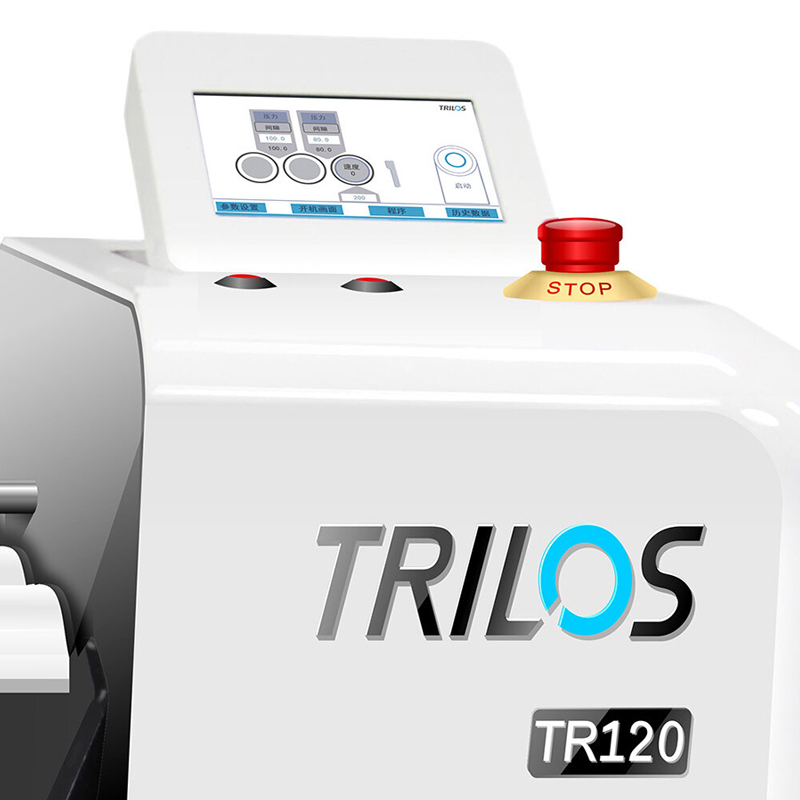

Intelligent Touchscreen Control System
A pop-up touchscreen interface displays real-time parameters including roll speed, roll gap, and apron pressure. Operators can store formulations and review historical data.
Aluminium Alloy Shell
The shell of TR120A is made of aluminium alloy, featured light weight and good rigidity, providing effective protection against minor impacts during transportation and handling.

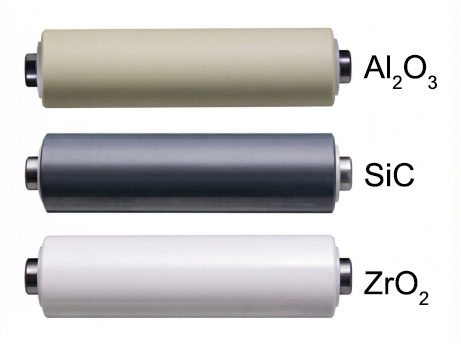

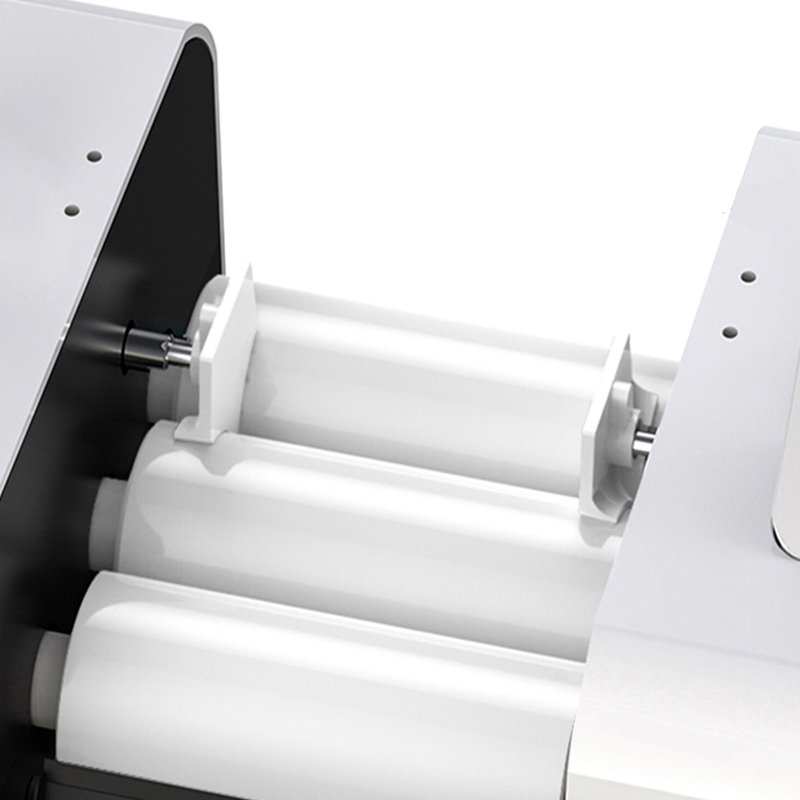

High-Quality Roll Materials
We choose high-quality materials for the rolls. Our engineers can help you choose the most suitable material for your application.
Available roll materials:
| Material | Hardness | Contamination | Application |
| Alloy Steel | High | High | inks & coatings |
| Zirconium Oxide | Very High | Extremely Low | lithium battery paste / electronic paste / pharmaceuticals / food & beverage |
| Aluminium Oxide | Very High | Extremely Low | ceramic paste / mineral material |
| Silicon Carbide | Extremely High | None | semiconductor / PV materials / nano materials |
Reliable Rolls
The rolls are precision ground and parallel to ensure long-term operational stability. They resist deformation, breakage, and misalignment even under extended operating conditions.

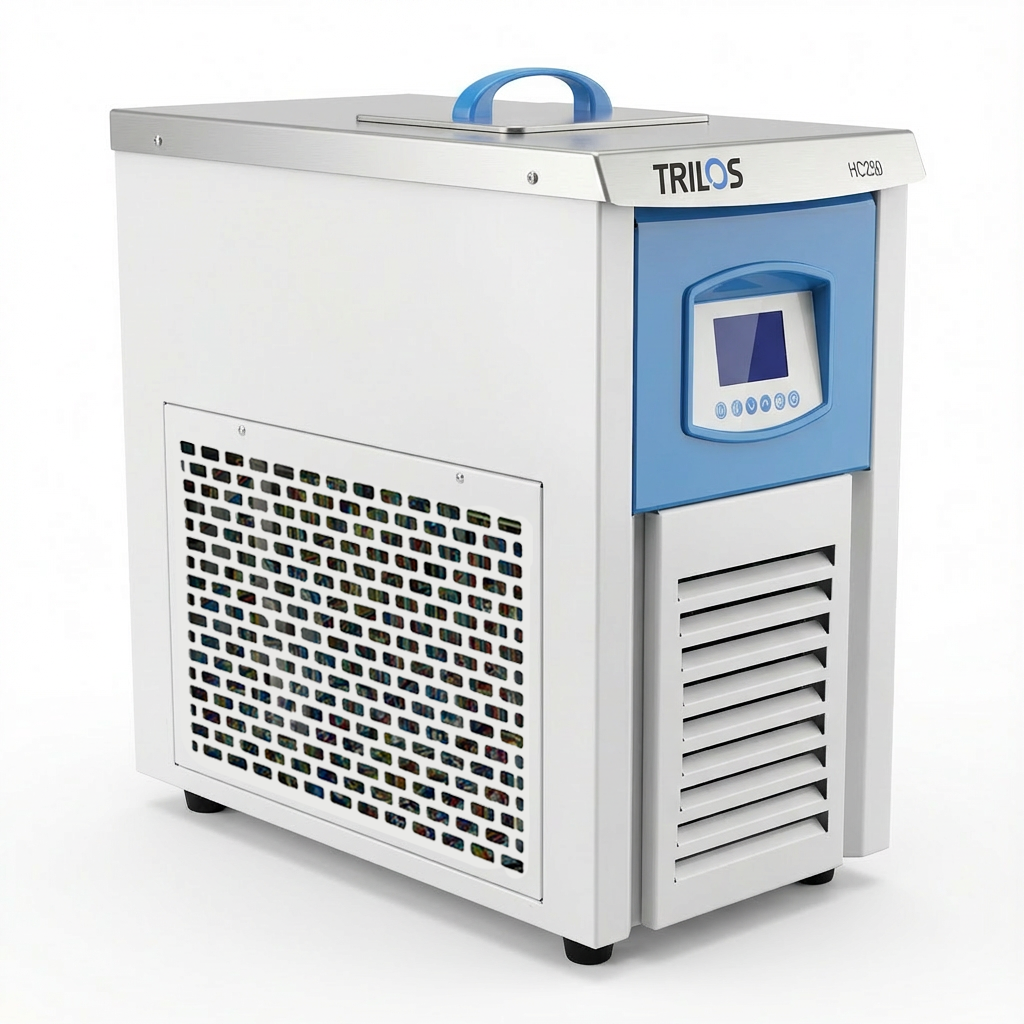

Circulating Water Bath
The hollow roll design allows connection to water bath. The system circulates homothermal water for precise temperature regulation. It cools the rolls to protect heat-sensitive materials as well as heating them to optimize the material's rheological properties for better processing.
Customized Service

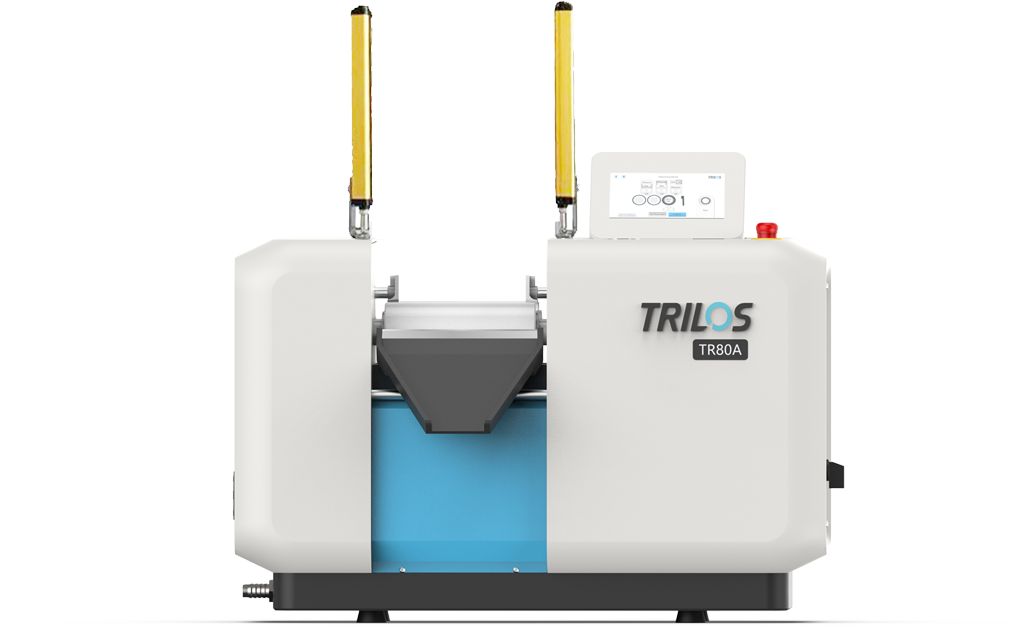

Safety accessories such as safety light curtain and barred charing hopper are available to meet specific operational safety standards and regulatory requirements.
Specifications
|
Parameter |
Metric |
Imperial |
|
Capacity |
60 L/h |
15.85 gal/h |
|
Roll Diameter |
120 mm |
4.7 in |
|
Roll Length |
450 mm |
17.7 in |
|
Roll Speed Ratio |
1 : 3 : 9 |
1 : 3 : 9 |
|
Roll Material |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
|
Power |
3 kW |
4.1 hp |
|
Dimensions (L×W×H) |
1150 × 660 × 1280 mm |
45.3 × 26.0 × 50.4 in |
|
Weight |
350 kg |
772 lb |
Applications
Advanced Material: battery materials / semiconductor pastes / polymer composites
Chemical Engineering: resins/ lubricants / adhesives
Cosmetics: BB cream / foundation / lip gloss
Electronic Industry: conductive paste / ceramic paste / solder mask / PV ink
Food: chocolate / nuts / flavour
Ink & Coating: ink / coating / colorants / pigments
Pharmaceuticals & Health Care: medical ointments / toothpaste
