Introduction

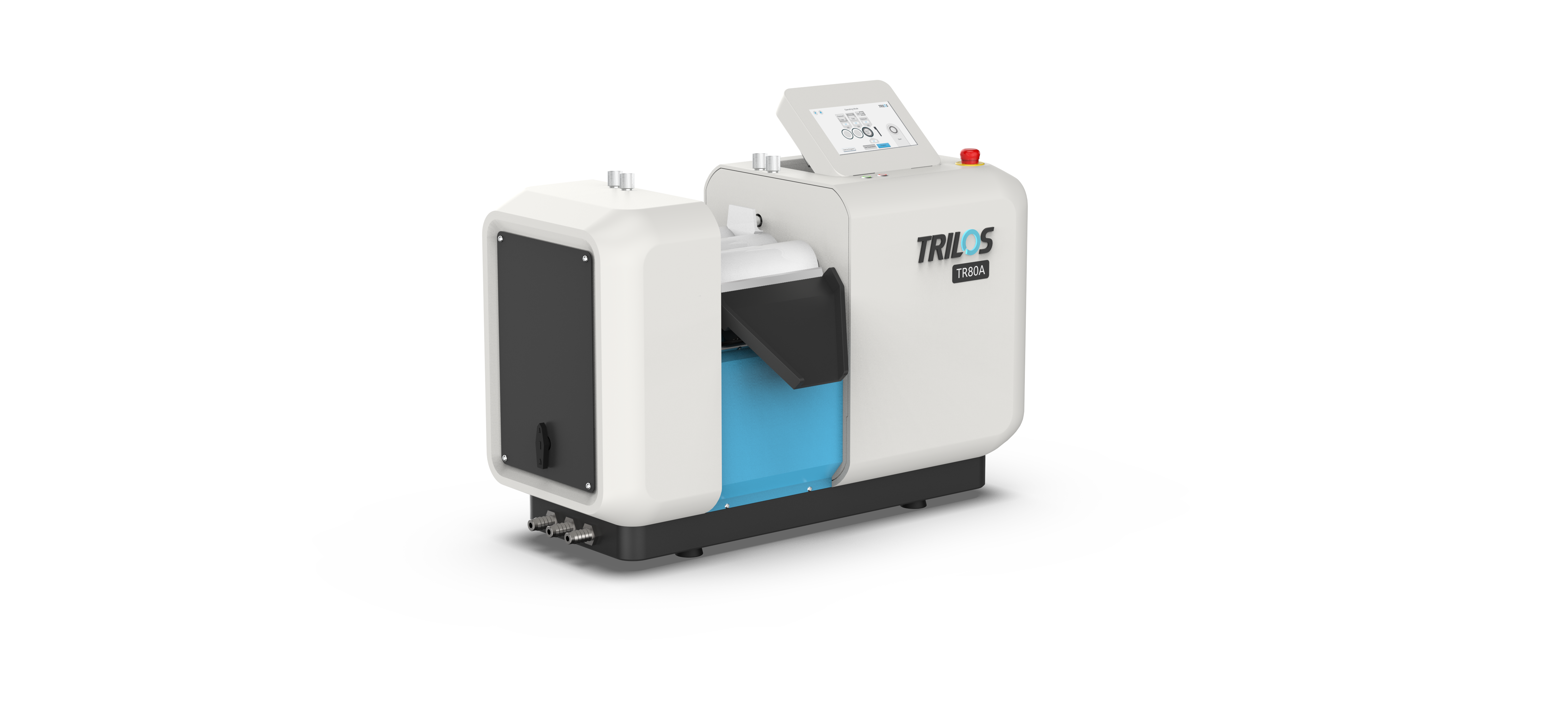

TRILOS TR80A is a pilot-scale production three roll mill designed for pilot-scale production and process validation. Featuring a digital touchscreen interface and adaptive apron system, TR80A significantly enhances operational precision and consistency.
With particle size reduction capability down to 1 μm, TR80A bridges the gap between laboratory development and full-scale manufacturing. Integration with TRILOS IoT platform enables remote control and process parameters preset.
Features
-
1 µm Dispersion Fineness
-
TRILOS IoT Platform
-
Intelligent Touchscreen Control System
-
Adaptive Apron Technology
-
Aerospace Grade Carbon Fiber Shell
-
High-Quality Roll Materials
-
Reliable Rolls
-
Circulating Water Bath
- Customized Service
1µm Dispersion Fineness
TR80A is capable of reducing particle size to below 1μm. It ensures exceptional dispersion uniformity for high-performance formulations and demanding materials.
TRILOS IoT Platform
TRILOS IoT platform pioneers in the three roll mill industry. It enables remote monitoring, parameter adjustment, and multi-step process execution via tablet, supporting smart manufacturing and process traceability.

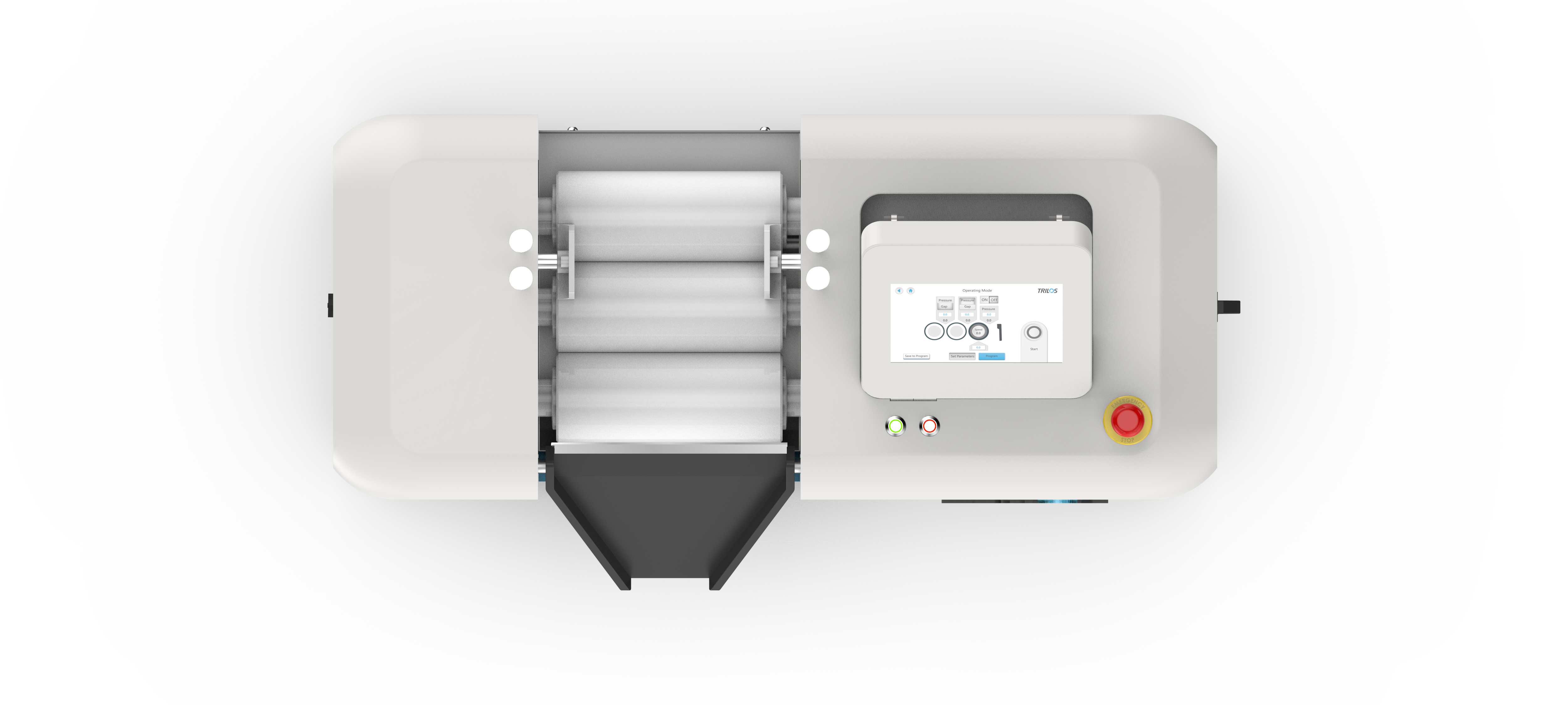

Intelligent Touchscreen Control System
A pop-up touchscreen interface displays real-time parameters including roll speed, roll gap, and apron pressure. Operators can store formulations and review historical data.
Adaptive Apron Technology
The automatically controlled apron maintains optimal contact with the apron roll, ensuring consistent material transfer and eliminating variability associated with manual adjustment.

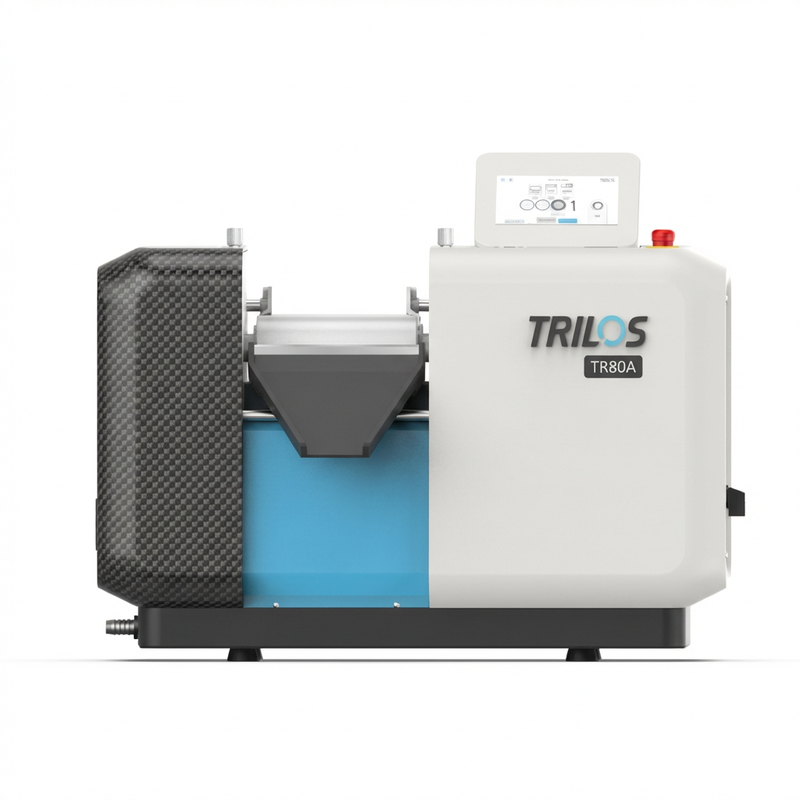

Aerospace Grade Carbon Fiber Shell
The shell of TR80A is made of aerospace grade carbon fiber, featured by light weight and solid structure, providing effective protection against minor impacts during handling and transportation.

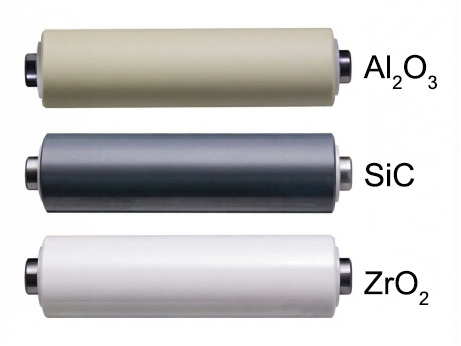

High-Quality Roll Materials
We choose high-quality materials for the rolls. Our engineers can help you choose the most suitable material for your application.
Available roll materials:
| Material | Hardness | Contamination | Application |
| Alloy Steel | High | High | inks & coatings |
| Zirconium Oxide | Very High | Extremely Low | lithium battery paste / electronic paste / pharmaceuticals / food & beverage |
| Aluminium Oxide | Very High | Extremely Low | ceramic paste / mineral material |
| Silicon Carbide | Extremely High | None | semiconductor / PV materials / nano materials |

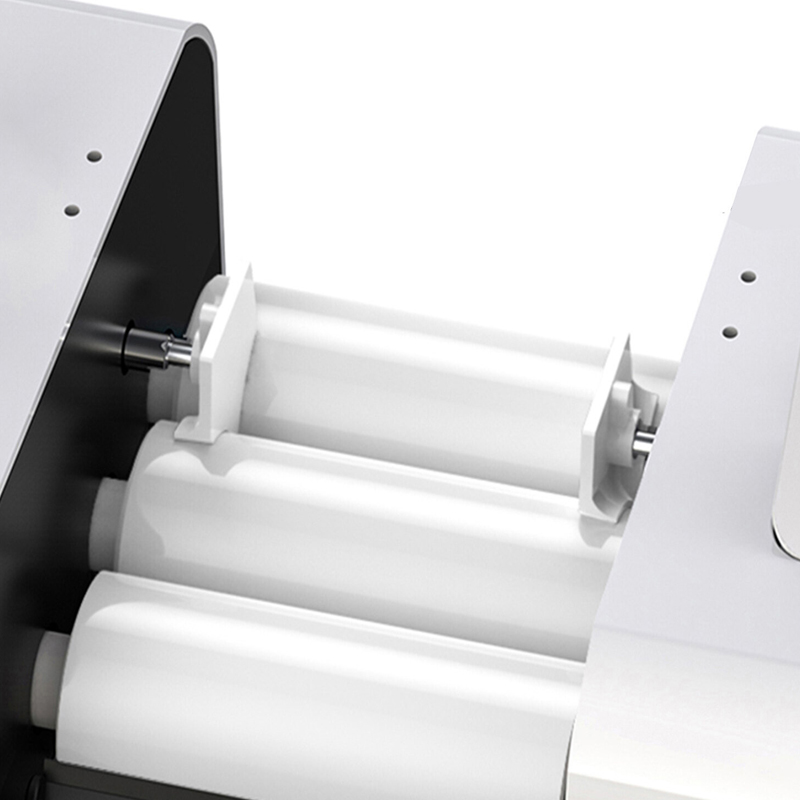

Reliable Rolls
The rolls are precision ground and parallel to ensure long-term operational stability. They resist deformation, breakage, and misalignment even under extended operating conditions.

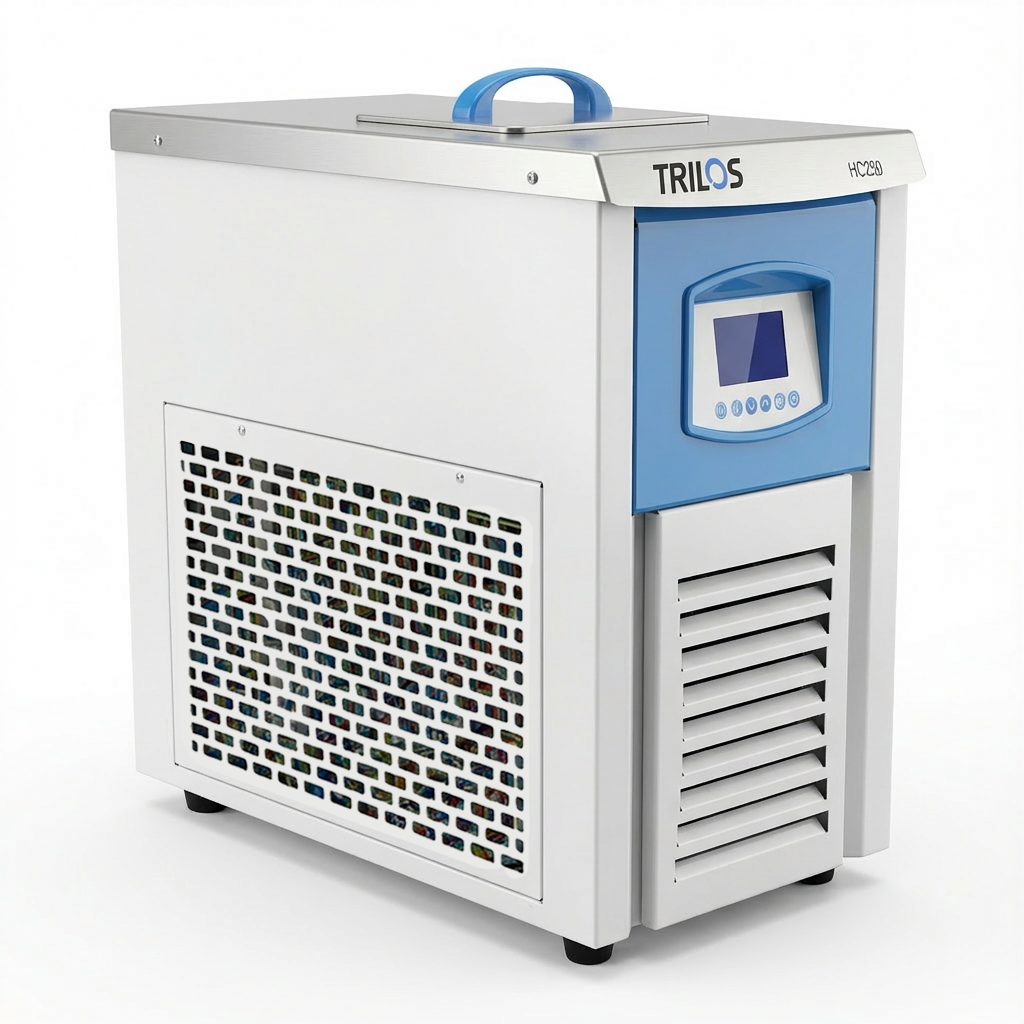

Circulating Water Bath

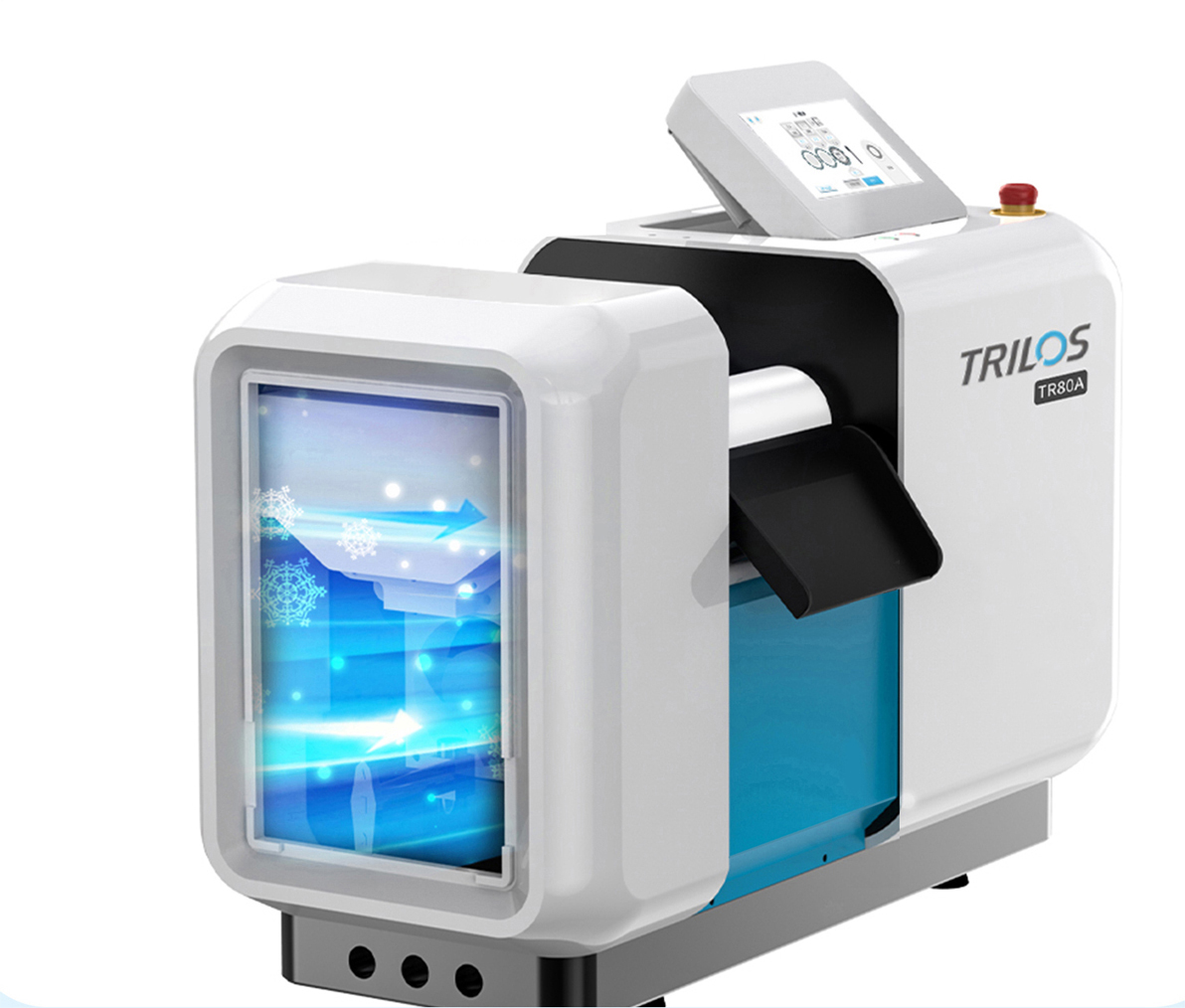

The hollow roll design allows connection to water bath. The system circulates homothermal water for precise temperature regulation. It cools the rolls to protect heat-sensitive materials as well as heating them to optimize the material's rheological properties for better processing.
Customized Service

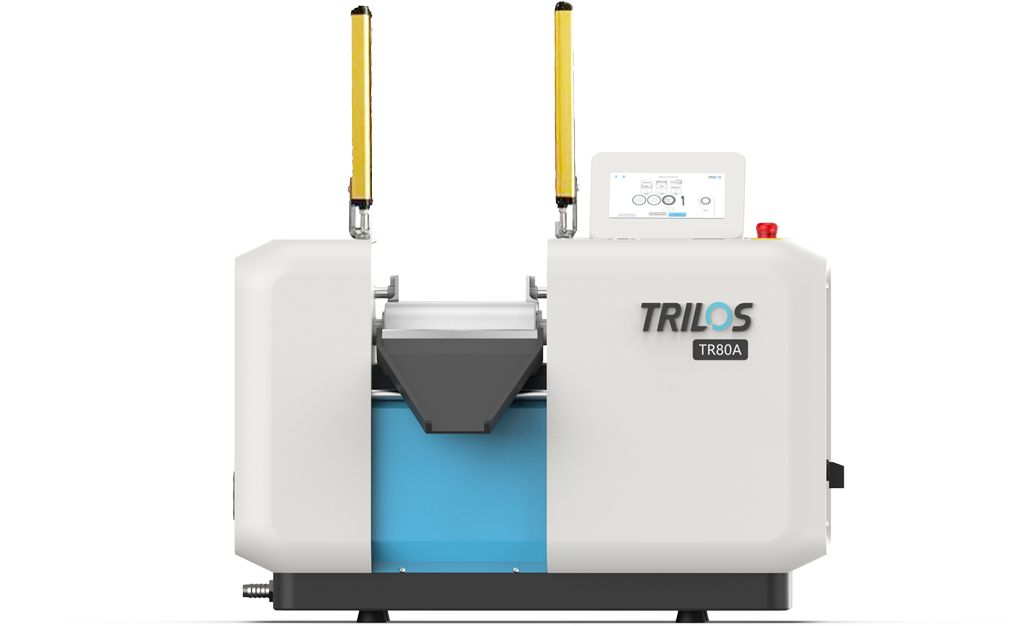

Safety accessories such as safety light curtain and barred charing hopper are available to meet specific operational safety standards and regulatory requirements.
Specifications
|
Parameter |
Metric |
Imperial |
|
Capacity |
20 L/h |
5.3 gal/h |
|
Roll Diameter |
80 mm |
3.15 in |
|
Roll Length |
200 mm |
7.9 in |
|
Roll Speed Ratio |
1 : 3 : 9 |
1 : 3 : 9 |
|
Roll Material |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
|
Power |
1.5 kW |
2 hp |
|
Dimensions (L×W×H) |
750 × 340 × 490 mm |
29.5 × 13.4 × 19.3 in |
|
Weight |
110 kg |
243 lb |
Applications
Advanced Material: battery materials / semiconductor pastes / polymer composites
Chemical Engineering: resins/ lubricants / adhesives
Cosmetics: BB cream / foundation / lip gloss
Electronic Industry: conductive paste / ceramic paste / solder mask / PV ink
Food: chocolate / nuts / flavour
Ink & Coating: ink / coating / colorants / pigments
Pharmaceuticals & Health Care: medical ointments / toothpaste
