Introduction
TRILOS TR50M is a compact benchtop three roll mill designed for laboratory research, formulation development, and small-scale sample preparation. Despite its compact dimension, TR50M delivers professional-level dispersion performance, making it an ideal tool for R&D engineers and laboratory technicians.
With stepless speed control and manually adjustable roll gaps, TR50M allows precise control over shear force and accuracy. Depending on material properties, particle sizes below 5 μm can be achieved with excellent uniformity and reproducibility.
Features
-
5 µm Dispersion Fineness
-
Space-Saving Benchtop Design
-
Aerospace Grade Carbon Fiber Shell
-
High-Quality Roll Materials
-
Reliable Rolls
-
Manual Control
-
Customized Service

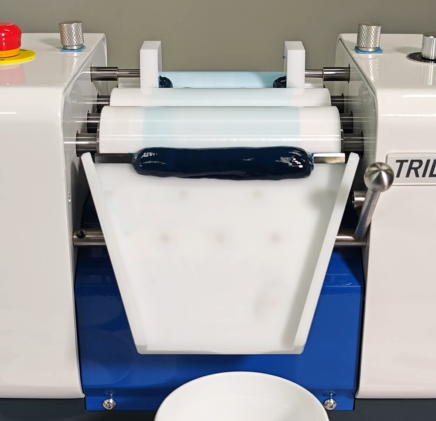

5 µm Dispersion Fineness
TR50M delivers high shear forces capable of reducing particle size to below 5 μm, ensuring uniform particle distribution and stable dispersion quality. This level of precision is essential for R&D validation, formulation screening, and process optimization.
Space-Saving Benchtop Design
TR50M is designed specifically for laboratory environments. It occupies little bench space while maintaining full functionality. The compact dimensions make it suitable for crowded R&D labs without sacrificing performance.

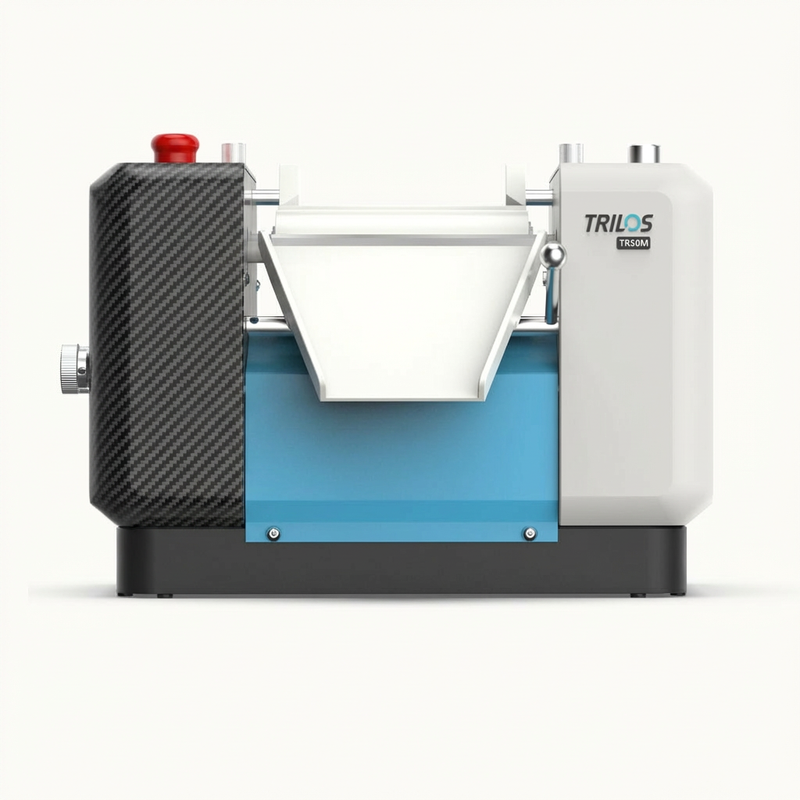

Aerospace Grade Carbon Fiber Shell
The shell of TR50M is made of aerospace grade carbon fiber, featured by light weight and solid structure, providing effective protection against minor impacts during handling and transportation.

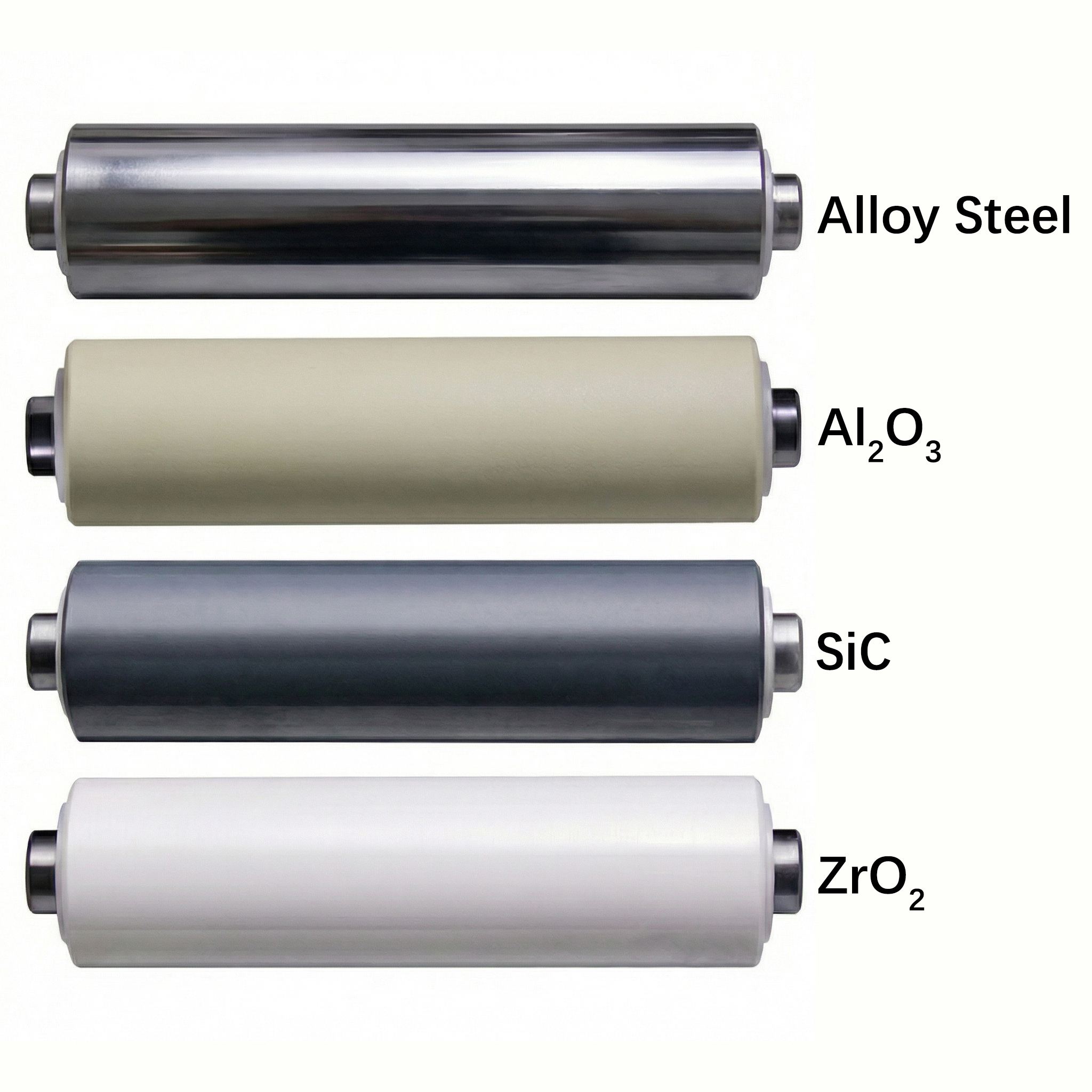

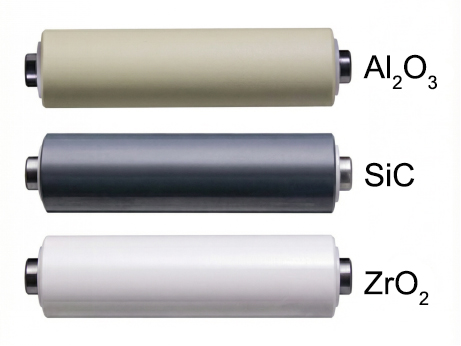

High-Quality Roll Materials
We choose high-quality materials for the rolls. Our engineers can help you choose the most suitable material for your application.
Available roll materials:
| Material | Hardness | Contamination | Application |
| Alloy Steel | High | High | inks & coatings |
| Zirconium Oxide | Very High | Extremely Low | lithium battery paste / electronic paste / pharmaceuticals / food & beverage |
| Aluminium Oxide | Very High | Extremely Low | ceramic paste / mineral material |
| Silicon Carbide | Extremely High | None | semiconductor / PV materials / nano materials |

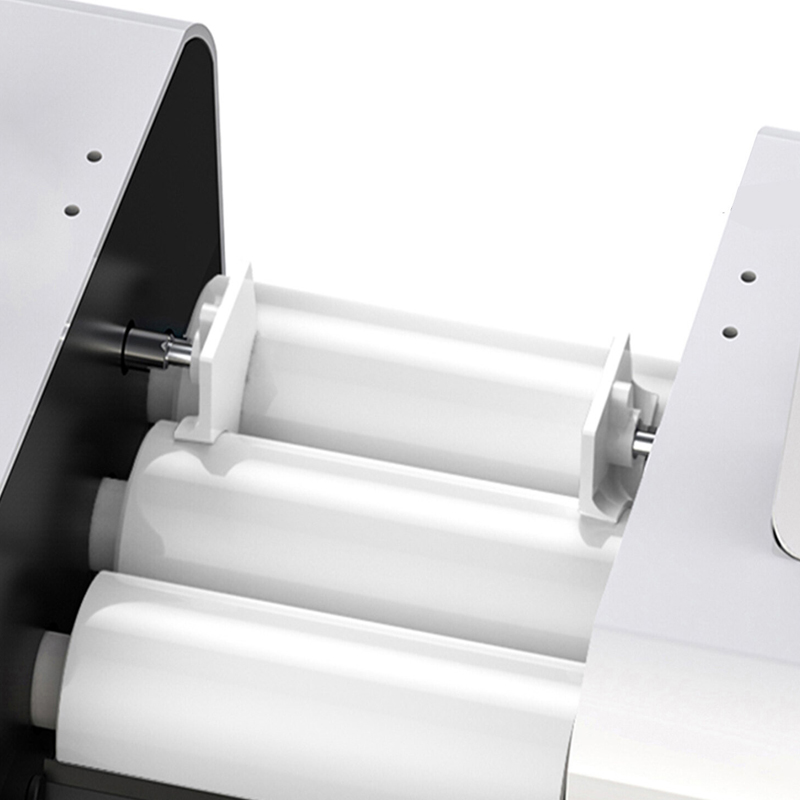

Reliable Rolls
The rolls are precision ground and parallel to ensure long-term operational stability. They resist deformation, breakage, and misalignment even under extended operating conditions.
Manual Control
Stepless speed regulation and gap adjustment allow operators to fine-tune roll speed and roll gap.
- Speed range: 0–100 rpm
- Gap range: 0–70 μm

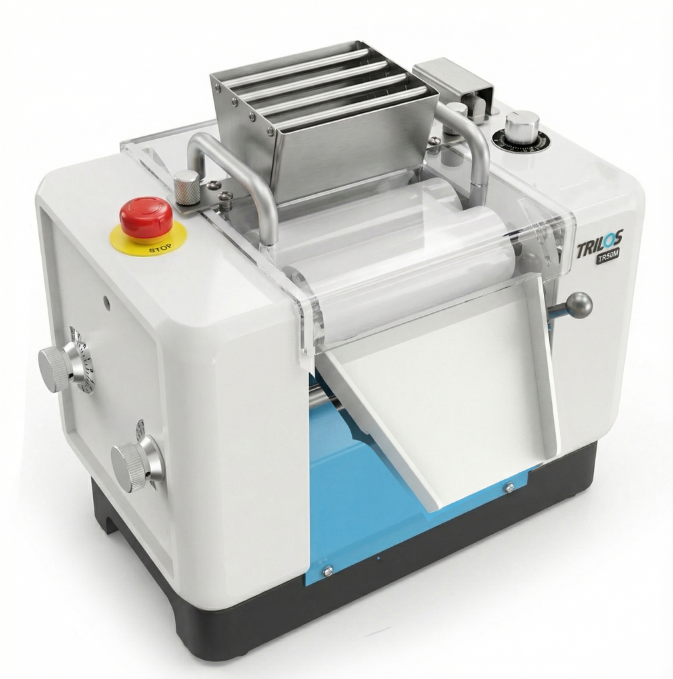

Customized Service
Safety accessories such as safety light curtain and barred charing hopper are available to meet specific operational safety standards and regulatory requirements.
Specifications
|
Parameter |
Metric |
Imperial |
|
Capacity |
5 L/h |
1.3 gal/h |
|
Roll Diameter |
50 mm |
2 in |
|
Roll Length |
150 mm |
5.9 in |
|
Roll Speed Ratio |
1:2:4 |
1:2:4 |
|
Roll Material |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
Alloy Steel / SiC / Al₂O₃ / ZrO₂ |
|
Power |
0.12 kW |
0.16 hp |
|
Dimensions (L×W×H) |
390 × 215 × 370 mm |
15.4 × 8.5 × 14.6 in |
|
Weight |
20 kg |
44.1 lb |
Applications
Advanced Material: battery materials / semiconductor pastes / polymer composites
Chemical Engineering: resins/ lubricants / adhesives
Cosmetics: BB cream / foundation / lip gloss
Electronic Industry: conductive paste / ceramic paste / solder mask / PV ink
Food: chocolate / nuts / flavour
Ink & Coating: ink / coating / colorants / pigments
Pharmaceuticals & Health Care: medical ointments / toothpaste
