Introduction

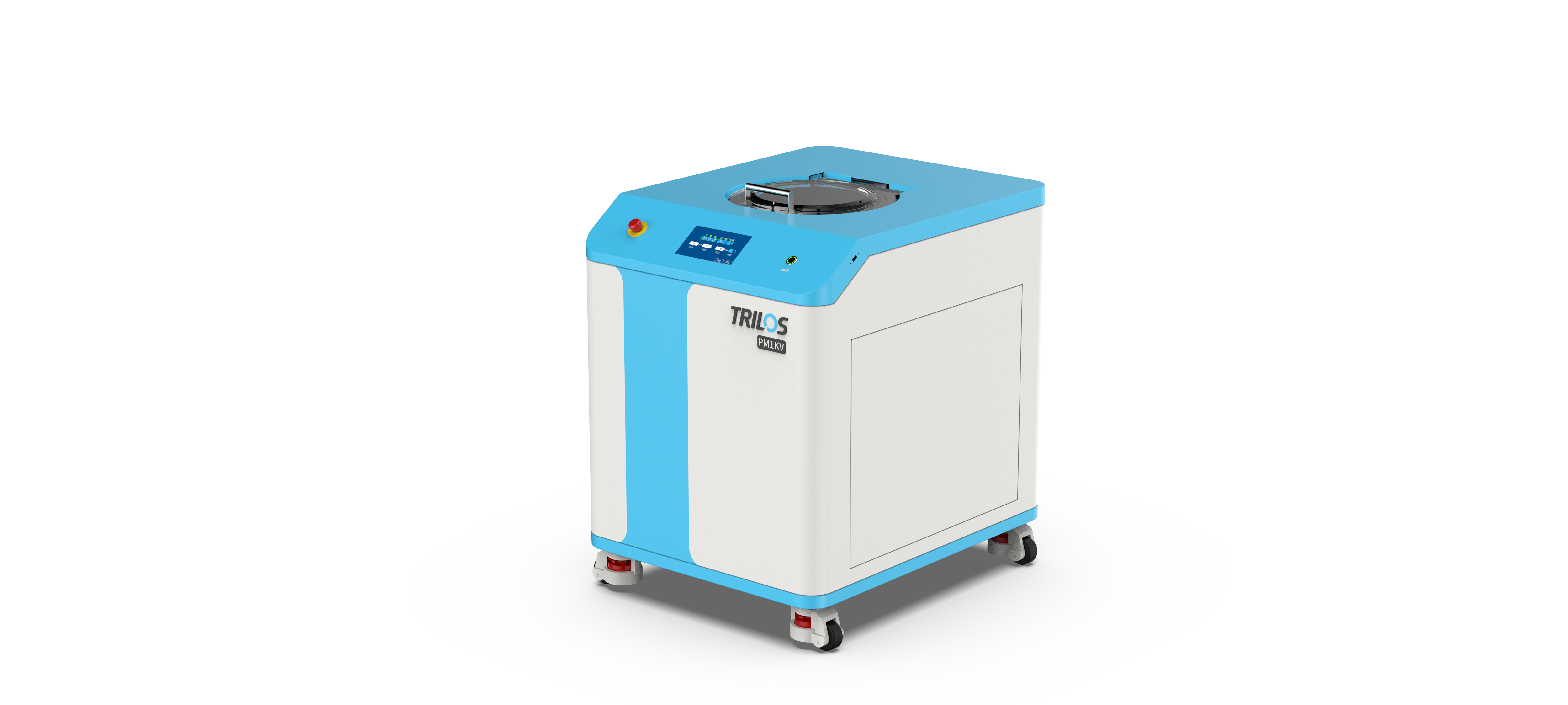

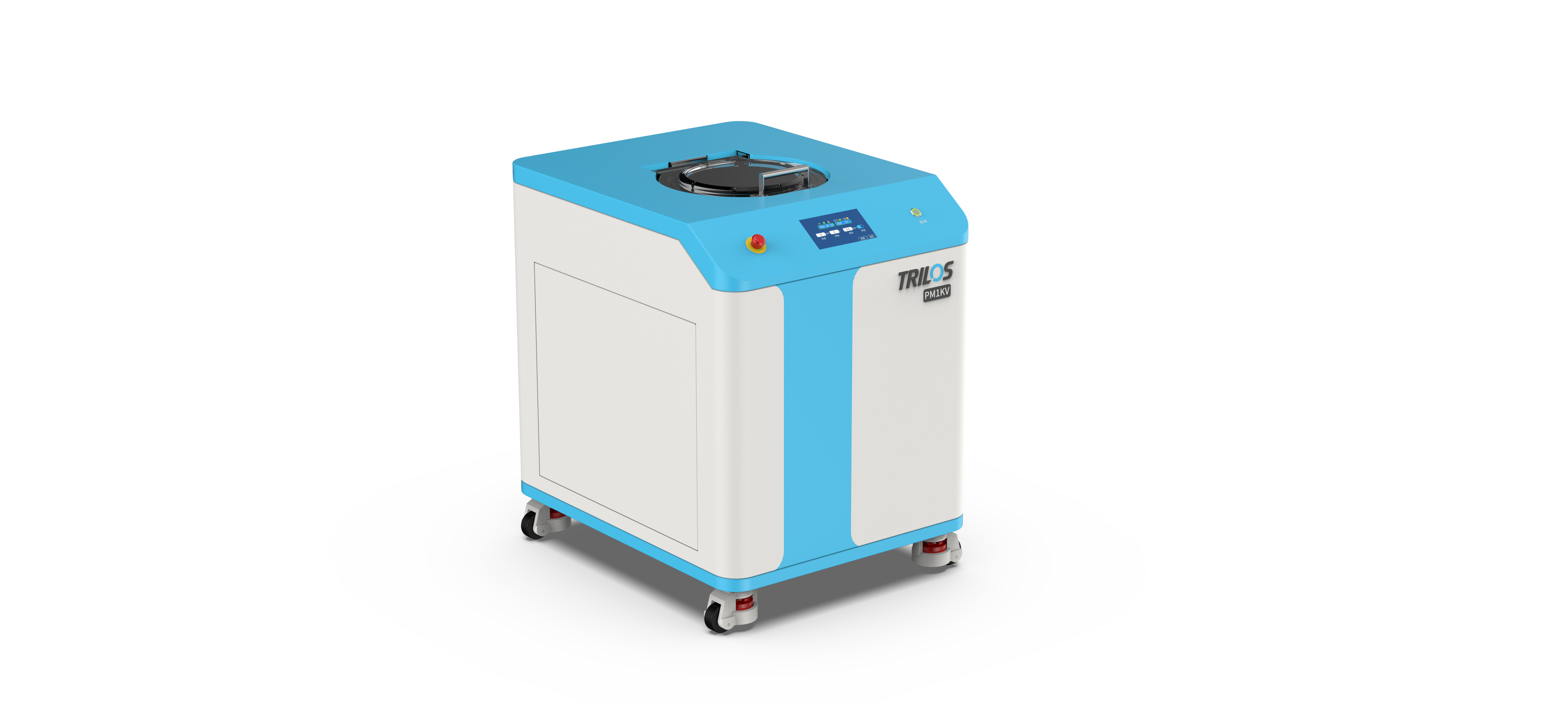

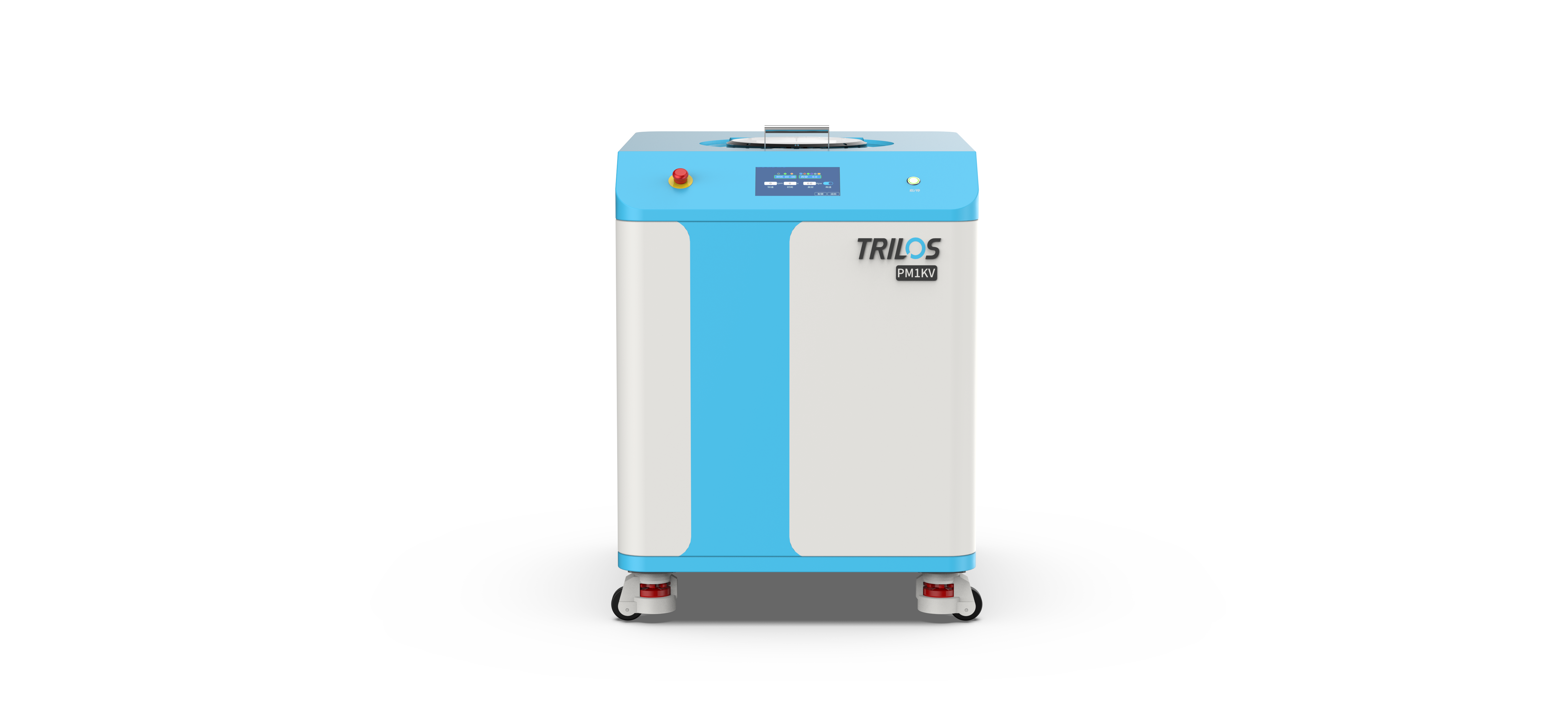

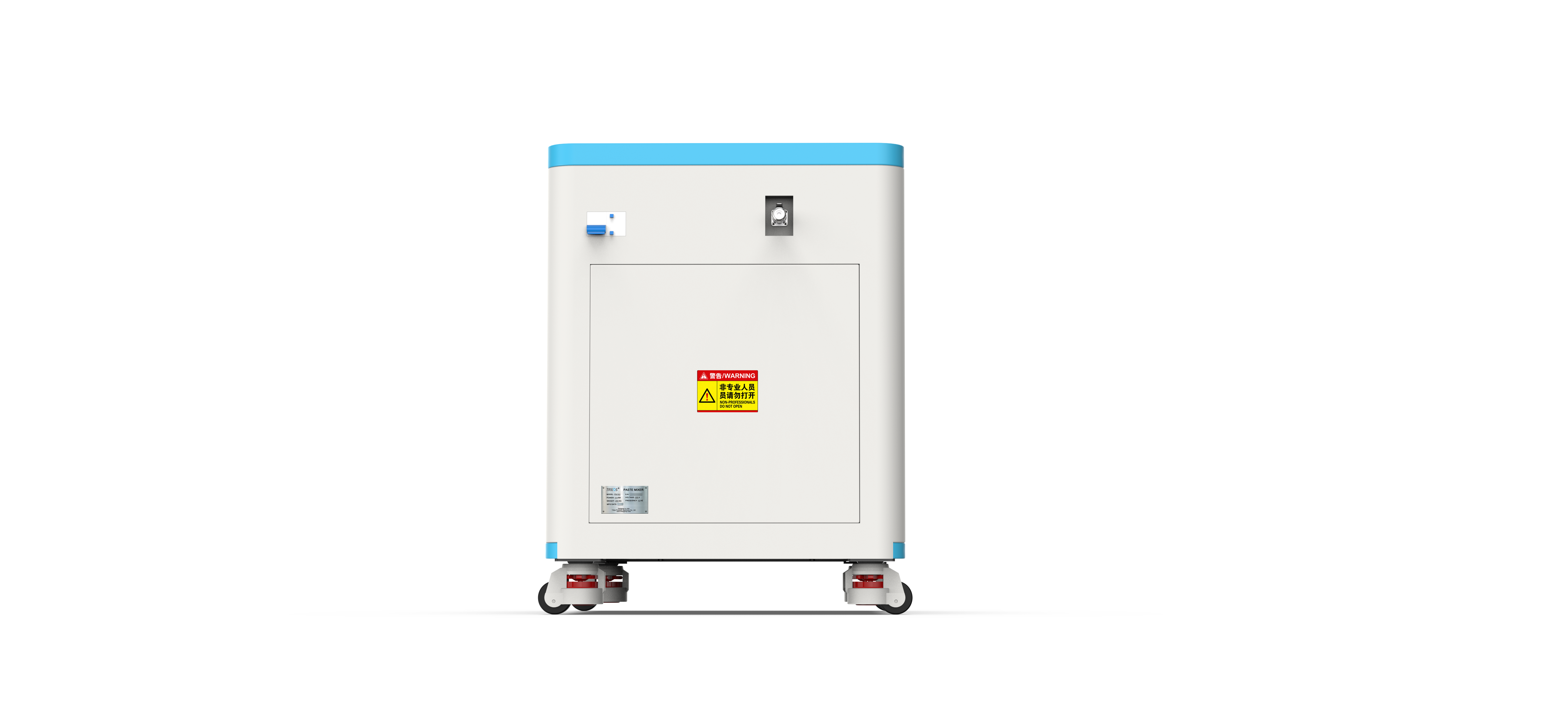

TRILOS PM1KV is the production model paste mixer for massive production. This model adopts floor-type design. For transport convenience, it is installed with leveling casters. PM1KV has an internal pump.
Features
-
Planetary motion for thorough, dead-zone-free mixing
-
Vacuum-assisted defoaming with high efficiency and low residual air content
-
Balanced High Shear and Gentle Processing
-
Wide Viscosity Processing Range
-
Precisely controllable parameters and stable process repeatability
-
Mixing and defoaming completed simultaneously in a single machine

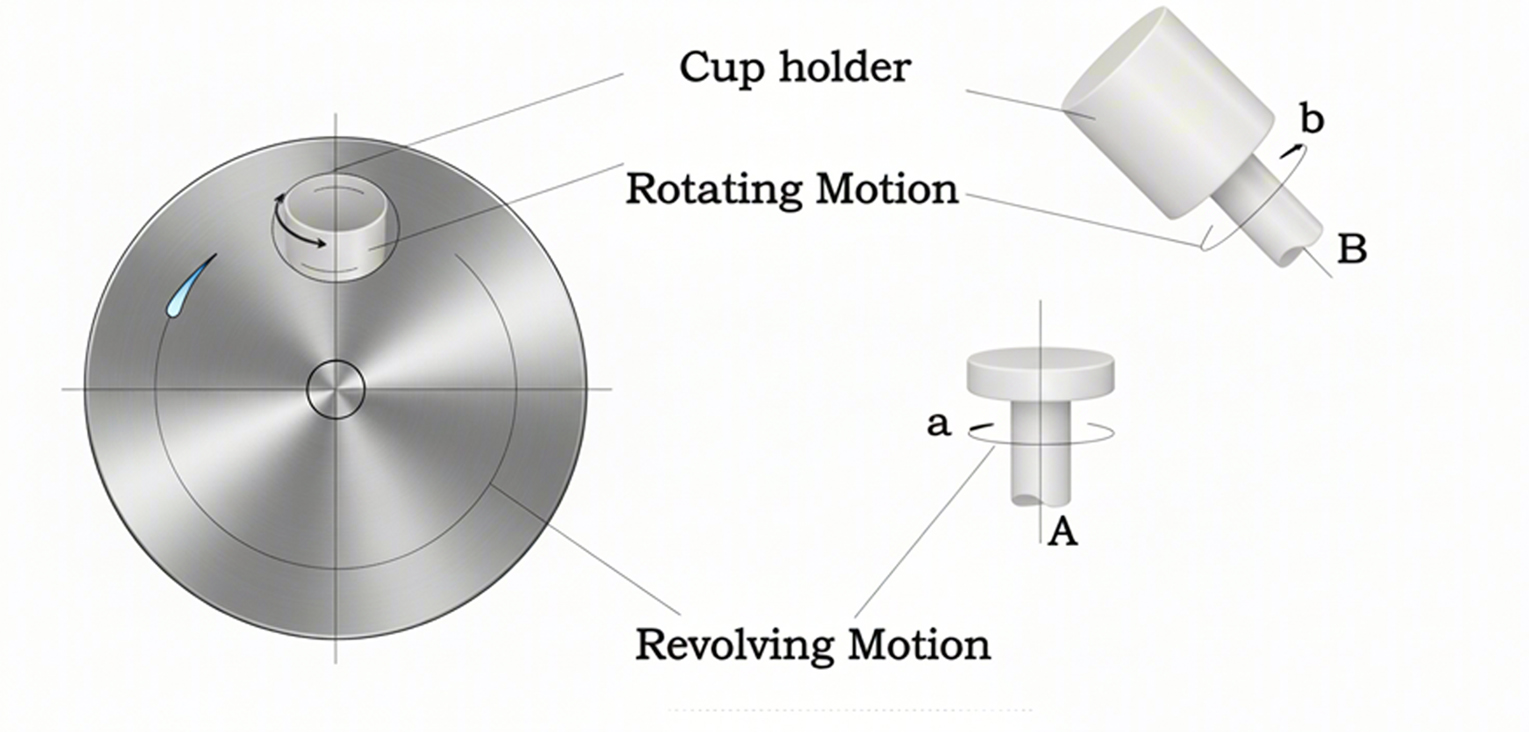

Planetary motion for thorough, dead-zone-free mixing
TRILOS Paste Mixer is equipped with a double planetary mixing system. The mixing process eliminates dead zones and prevents local inhomogeneity. It is especially suitable for high-viscosity and thixotropic materials.

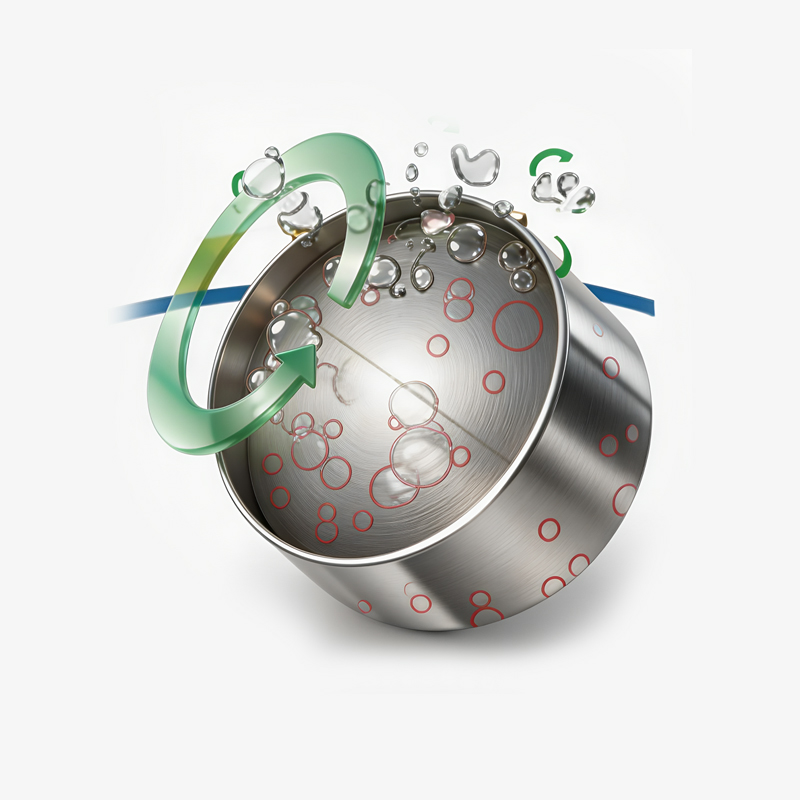

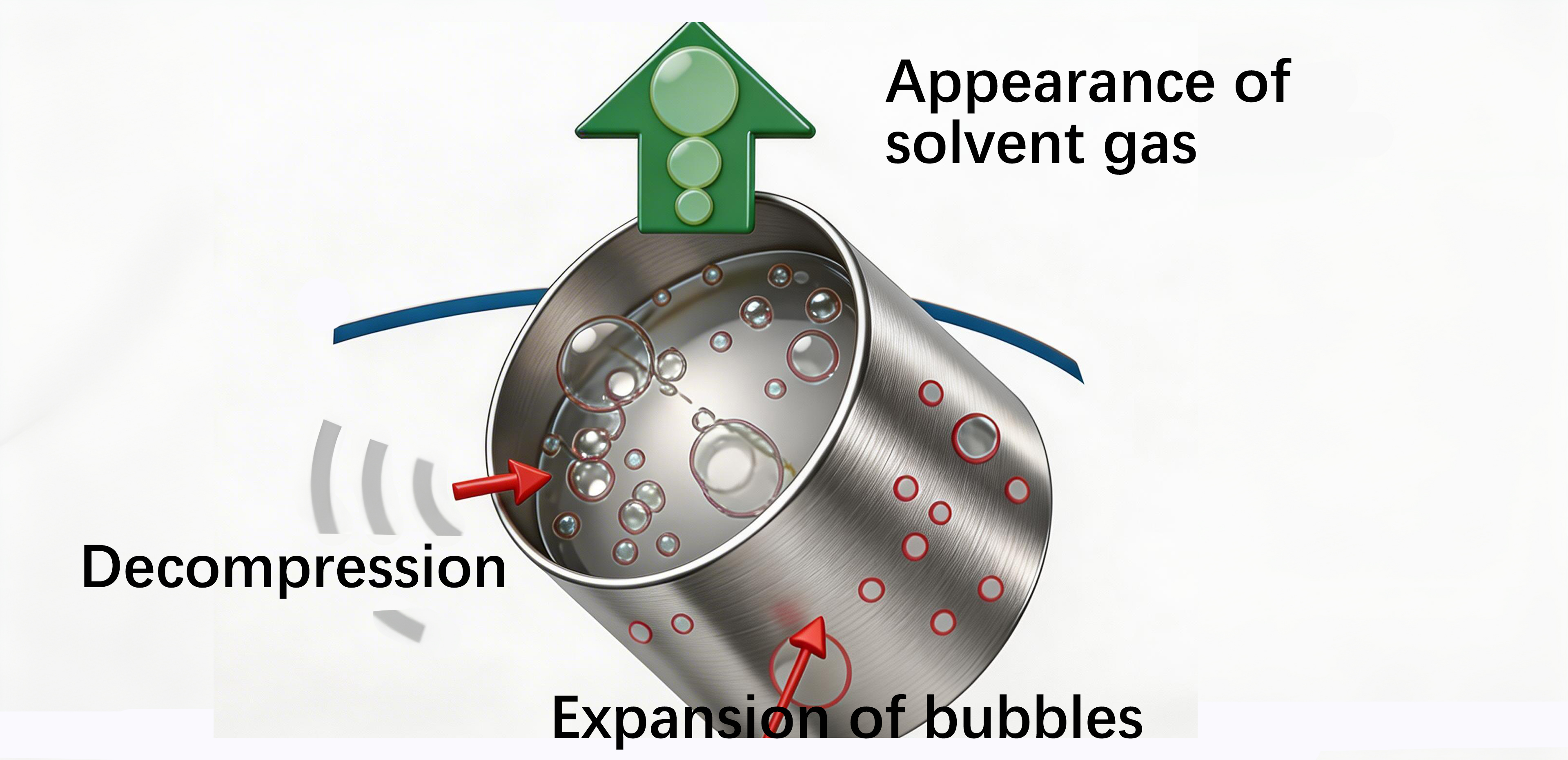

Vacuum-assisted defoaming with high efficiency and low residual air content
The system operates in a sealed chamber under vacuum. During mixing, sub-micron bubbles rapidly expand, rupture, and are removed from the material. The evacuation significantly reduces residual air content in the final product. Additionally, it also minimizes defects such as voids, pinholes, and structural weaknesses, resulting in an improvement of mechanical, electrical, and surface performance.
Balanced High Shear and Gentle Processing
By optimizing planetary motion paths and speed combinations, TRILOS Paste Mixer delivers high mixing efficiency while avoiding excessive shear that could damage sensitive materials such as filled systems and powder–liquid mixtures. Our Paste Mixer maintains the original performance of formulated materials as well as preserving the molecular structure.
Wide Viscosity Processing Range
TRILOS Paste Mixer is capable of handling materials from medium viscosity to ultra-high viscosity, including paste-like, gel-like, and high-solid-content systems.
Precisely controllable parameters and stable process repeatability
Key parameters such as mixing speed, processing time, and vacuum level can be precisely controlled and stored for repeatable operation, ensuring high batch-to-batch consistency and reducing operator-dependent variability. It is suitable for scale-up and quality-controlled production.

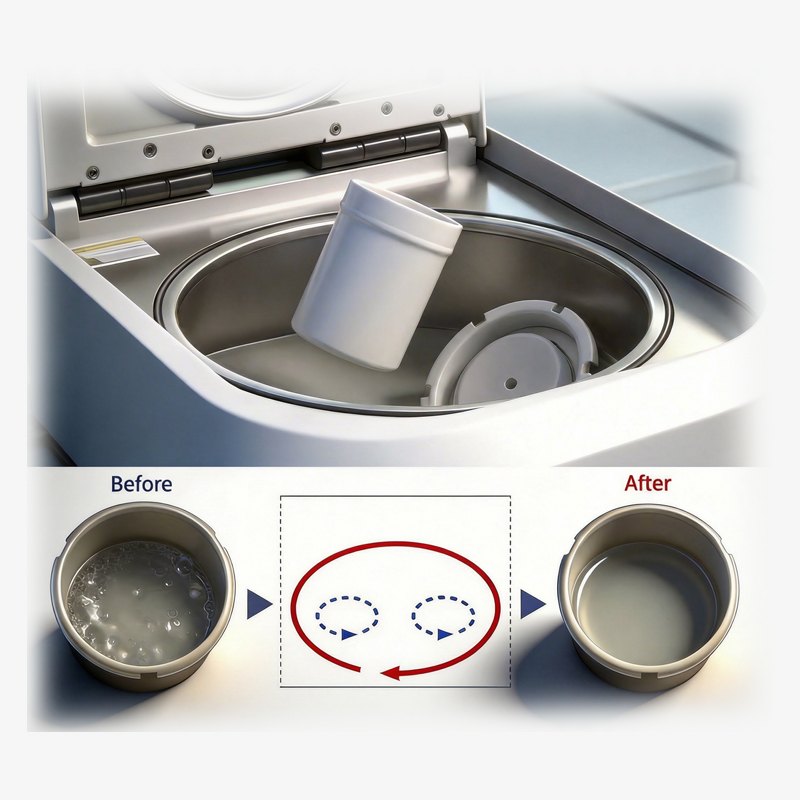

Mixing and defoaming completed simultaneously in a single machine
Mixing and defoaming are completed in a single unit and a single process, eliminating intermediate transfers and redundant handling steps. It turns out to shorter process flow, lower risk of contamination and higher overall production efficiency.
Specifications
|
Parameter |
Metric |
Imperial |
|
Max. Processing Volume |
1000 ml × 2 |
33.81 fl oz × 2 |
|
Revolution Speed |
300 ~ 2000 rpm |
300 ~ 2000 rpm |
|
Rotation Speed |
300 ~ 2000 rpm |
300 ~ 2000 rpm |
|
Voltage |
AC 220 V / 50 Hz |
AC 220 V / 50 Hz |
|
Power |
3.5 kW |
4.7 HP |
|
Net weight |
200 kg |
441 lb |
|
Dimensions (L×W×H) |
800 × 680 × 890 mm |
31.5 × 26.8 × 35 in |
Applications
New Energy Materials: Battery slurry (lithium-ion battery cathode & anode slurry, sodium-ion battery slurry) / solid-state electrolyte materials / PV paste / fuel cell electrode slurry
Nanomaterials & Fine Chemicals: Nano-scale slurry such as CNT, graphene, metal paste / functional slurry for fine chemical applications / functional inks for printed electronics
3D Printing & Additive Manufacturing: Photocurable resins, ceramic and metal powder slurry / biocompatible printing materials / modified polymer-based feedstock
Electronics & Semiconductor: Electronic encapsulation adhesives (epoxy- and silicone-based) / conductive silver pastes & conductive inks / optical adhesives (OCA and liquid types) / thermally conductive silicone greases
Chemical & Adhesives: Epoxy resins / polyurethane systems / silicone rubbers / various adhesives / sealants & potting compounds / coatings & pigment dispersions / tile grouts & colored mortar formulations
Biopharmaceutical: Medical-grade adhesives & silicone / pharmaceutical ointment & gel bases / dental restorative materials / 3D printing bio-inks / bioreagent slurry
Automotive and Aerospace: Structural adhesives & sealants / electronic encapsulation materials / optical adhesives / carbon fiber composite slurry / high-temperature-resistant adhesives
Food & Cosmetics: Cream & gel bases / sauces & paste-like formulations / cosmetic emulsions & cream bases / mixed slurry for food additives
Ceramics & Glass: Ceramic slurry (electronic ceramics & piezoelectric ceramics) / glass inks & sealing materials / coating slurry for PV glass
Display: Liquid crystal & quantum dot display materials / display panel encapsulation adhesives / optical bonding adhesives
