Introduction

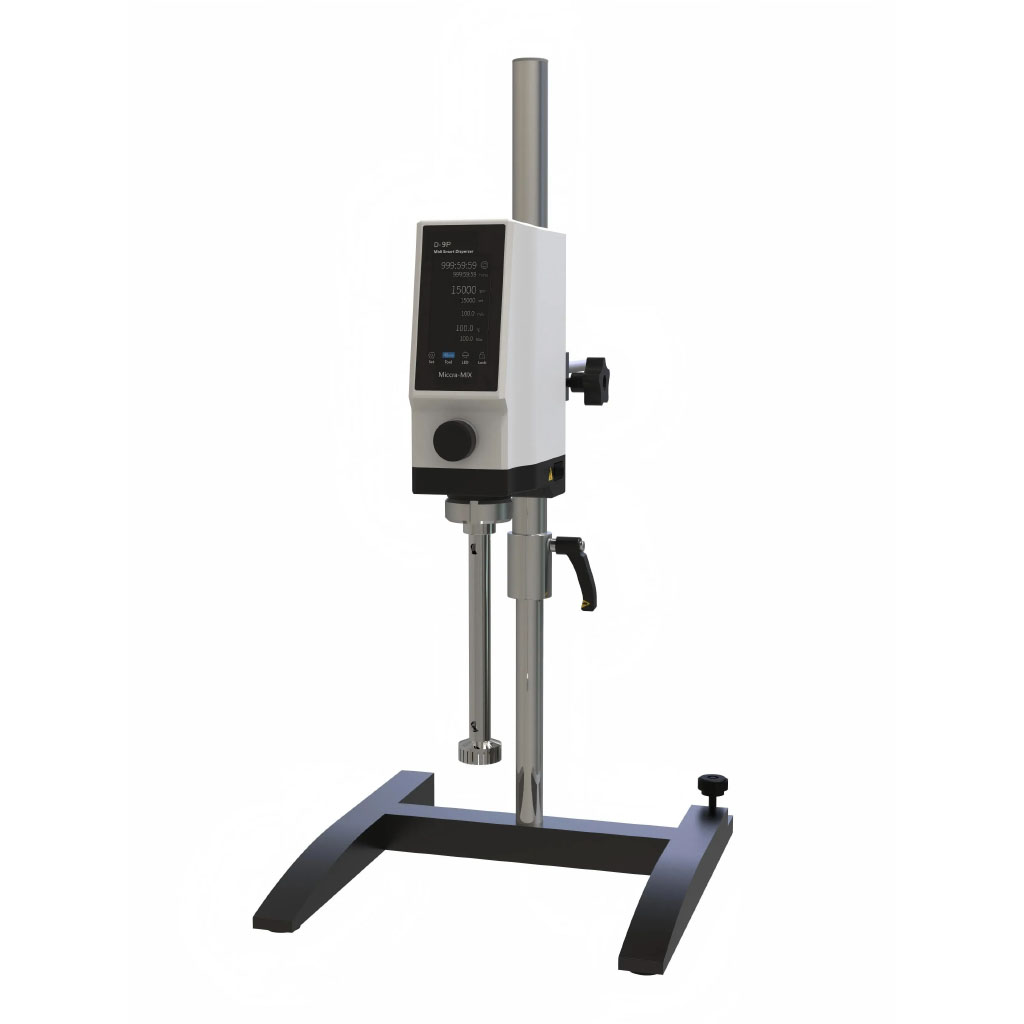

D-9 disperser is the expert in dispersion and emulsification. With 950W high power, its maximum capacity for water reaches 20000 ml. Additionally, it has a larger TFT touchscreen than the D-4 series have. Several alternative blades are available, in order to process materials in different viscosity.
Features
- Brushless DC Motor (BLDC), which is more efficient and durable than BDC
- TFT touchscreen, which is easy to operate and clearly shows data
- Great rotation control: precision reaches 100 rpm, rotational speed reaches 1500 rpm minimum
- Good overload capacity and long service life
- Quiet and stable operation
- Multiple blades are available, offering you solutions for homogenization and emulsification
Specifications
|
Input power |
950 W |
|
Output power |
760 W |
|
Capacity (H2O) |
0.1-20000 ml |
|
Maximum viscosity |
8000 mpas |
|
Maxmimum torque |
55 Ncm |
|
Maximum speed |
1500-15000 rpm |
|
Size |
92x 183 x177 mm |
|
Weight |
4.2 kg |
|
Power requirement |
230 V AC, 50/60 Hz |
Blade List
|
Type |
DS30/PG PMIR |
DS30/PGH PMIR |
DS-30/PF PMIR |
DS-40/PGH PMIR |
DS-40/PF PMIR |
|
Application |
Pasty liquid |
Pasty liquid |
Low viscosity liquid |
Pasty liquid |
Low viscosity liquid |
|
Capacity |
100-5000 ml |
1000-20000 ml |
1000-12000 ml |
||
|
Stator OD |
30mm |
40mm |
|||
|
Shear velocity |
30m/s |
40.6m/s |
|||
|
Length |
250mm |
||||
|
Suspension particle size |
10-50µm |
10-50µm |
10-25µm |
10-50µm |
10-25µm |
|
Emulsion particle size |
1-10µm |
||||
