Introduction

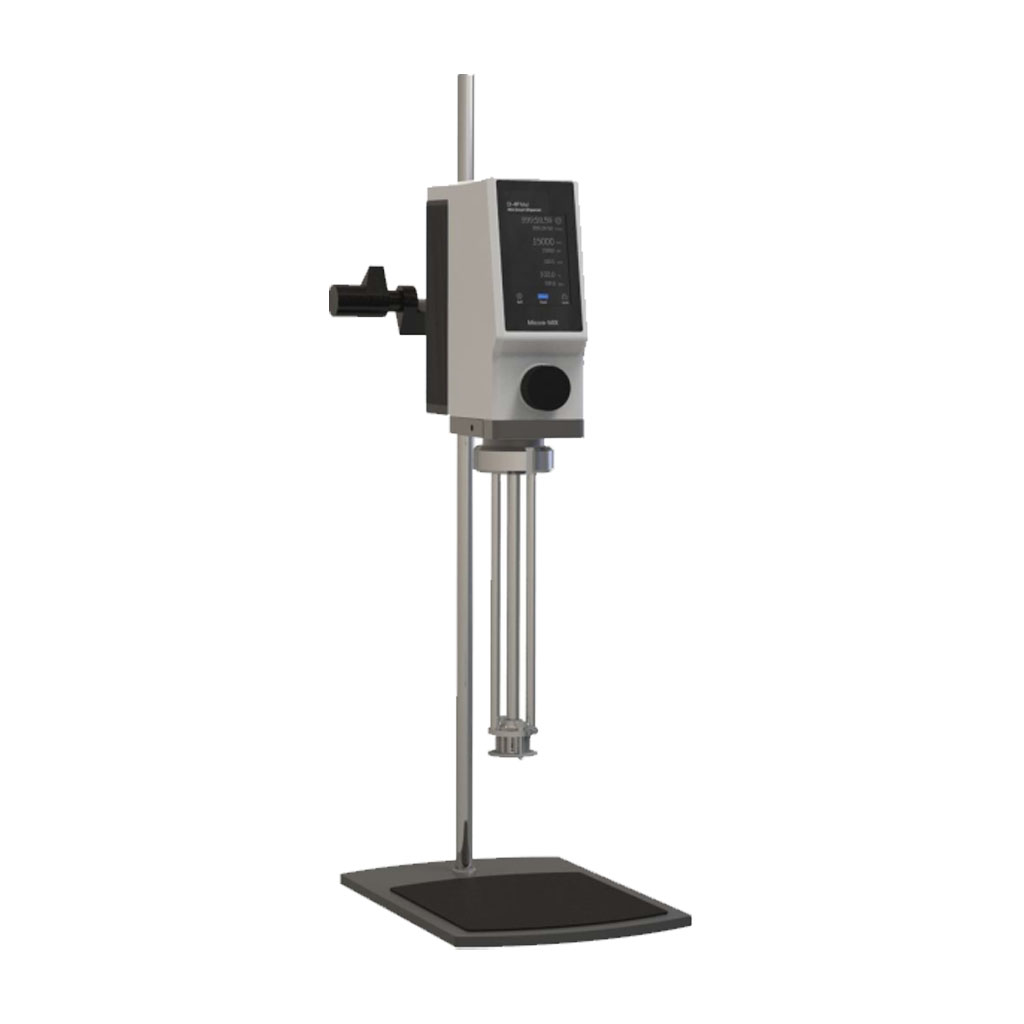

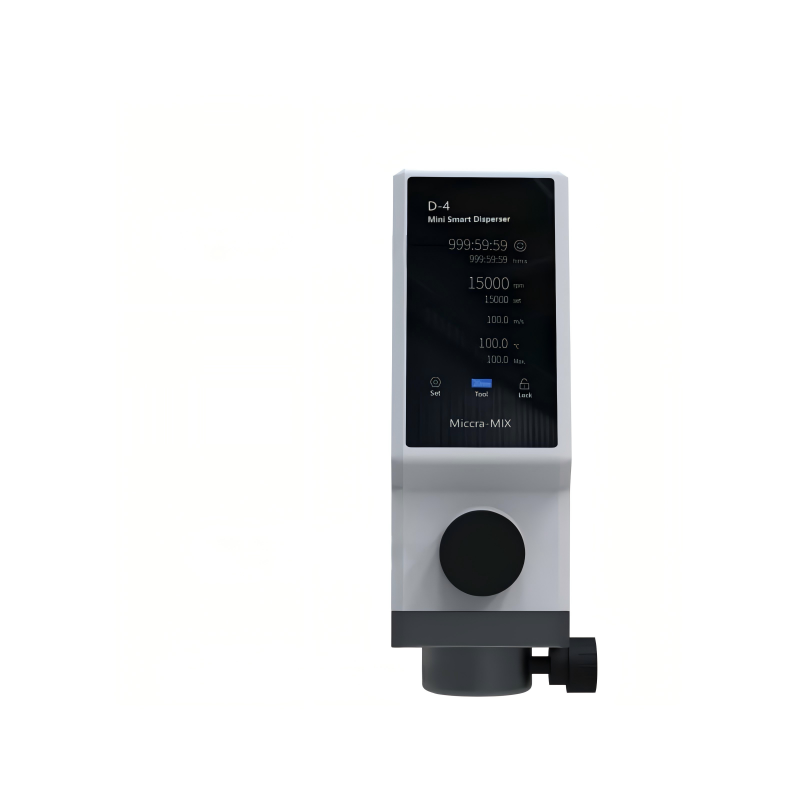

D-4 series dispersers are the expert in dispersion and emulsification at labs. They can disperse and mix a variety of samples with low capacities and viscosity. Every D-4 model is equipped with a TFT touchscreen, which is handy for users to operate visually. Several alternative blades are available, in order to homogenize and emulsify cream and ointment materials.
Features
- Brushless DC Motor (BLDC), which is more efficient and durable than BDC
- TFT touchscreen, which is easy to operate and clearly shows data
- Great rotation control: precision reaches 100 rpm, rotational speed reaches 1500 rpm minimum
- Good overload capacity and long service life
- Quiet and stable operation
- WiFi remote control
- Multiple blades are available, offering you solutions for homogenization and emulsification
Specifications
|
|
D-4 |
D-4P |
D-4P Mul |
|
Maximum capacity (H2O) |
2 L |
5 L |
5 L |
|
Maximum viscosity |
8000 mpas |
||
|
Input/output power |
450/360 W |
||
|
Speed range |
3000-25000 rpm |
1500-15000 rpm |
|
|
Size (W×D×H) |
80×175×230 mm |
||
|
Weight |
3 kg |
||
|
Power requirement |
230V AC, 50/60 Hz |
||
Blade List
The following lists only show typical blades. If you need other blades, please consult us.
D-4
|
|
14mm series |
18mm series |
20mm series |
30mm series |
|
Stator OD |
14mm |
18mm |
20mm |
30mm |
|
Capacity |
10-500ml |
20-1000ml |
20-3000ml |
500-8000ml |
|
Application |
Homogenization, emulsification |
|||
D-4P Mul
|
|
MS-30/VISC |
MS-30/PF PMIR |
|
Stator OD |
30mm |
|
|
Capacity |
100-5000ml |
|
|
Application |
Homogenization of cream, ointment and low-fluidity samples |
Emulsification of oil and water, homogenization of cream and ointment |
