Similar to non vacuum models, this model is developed for small or mediate production that based on the small laboratory equipment which is focus on a high frequency working environment.The principle of the model is that takes advantage of the force that transformed by the high strength of revolution and rotation, high-speed rotation of the centrifugal. It can achieve dispersion and mixing from all kinds of low viscosity, high viscosity paste and paste material. When the material is in the process of rotation and revolution, the mixing device can can deeply clean the sub micron bubble by adding vacuum extraction function. And it not only can deal with all kinds of high viscosity and high viscosity material’s sub micron bubbles but also shorten the treatment time.  In a highly eccentric condition, the material can be continuously mixed. Also in a mixed high-speed repeatedly tumbling motion process, tiny bubbles are constantly squeezed out by the vacuum and be extracted. This is the most perfect solution for small or mediate batch production and mixing.

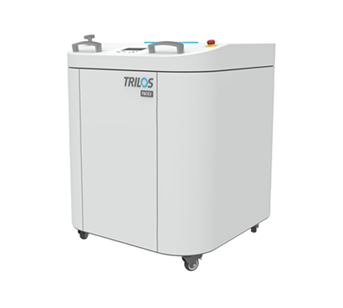

Model£ºPM1kV

Max. Loading Capacity£º1100cc x 2 cup

Max. Revolution Rotation speed£º750RPM

Max. Rotation speed£º750RPM

Program£º Independent control of rotation and revolution.

Power£º220V, 3Kw

Dimensions£º760x950x760mm

Weight£º250kg

Nano materials chemistry / polymer cosmetic medicine / drug printing / ink assembly / paste adhesive / sealant materials / conductive adhesive / sample dispensing / ointment metal / slurry electric /sealant battery / electrode material

Nano material	Polymer	Cosmetic	Pharmacy and medical treatment
Printing Ink&coating	Adhesive	LCD module electrical adhesive	Conductive paste
